Model C Alarm Valve (Flanged)

Model C Alarm Valve (Flanged)

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
Size range 80mm
100mm
150mm
200mm
Body type Flanged
Flange Connection ANSI 150 or PN16
Working pressure 17.5 bar (250 psi)
*For 200mm FM approval is rated up to 14 Bar (200 PSI)
Material Ductile Iron
Finish Red RAL 3001
Approvals FM Approved, UL Listed

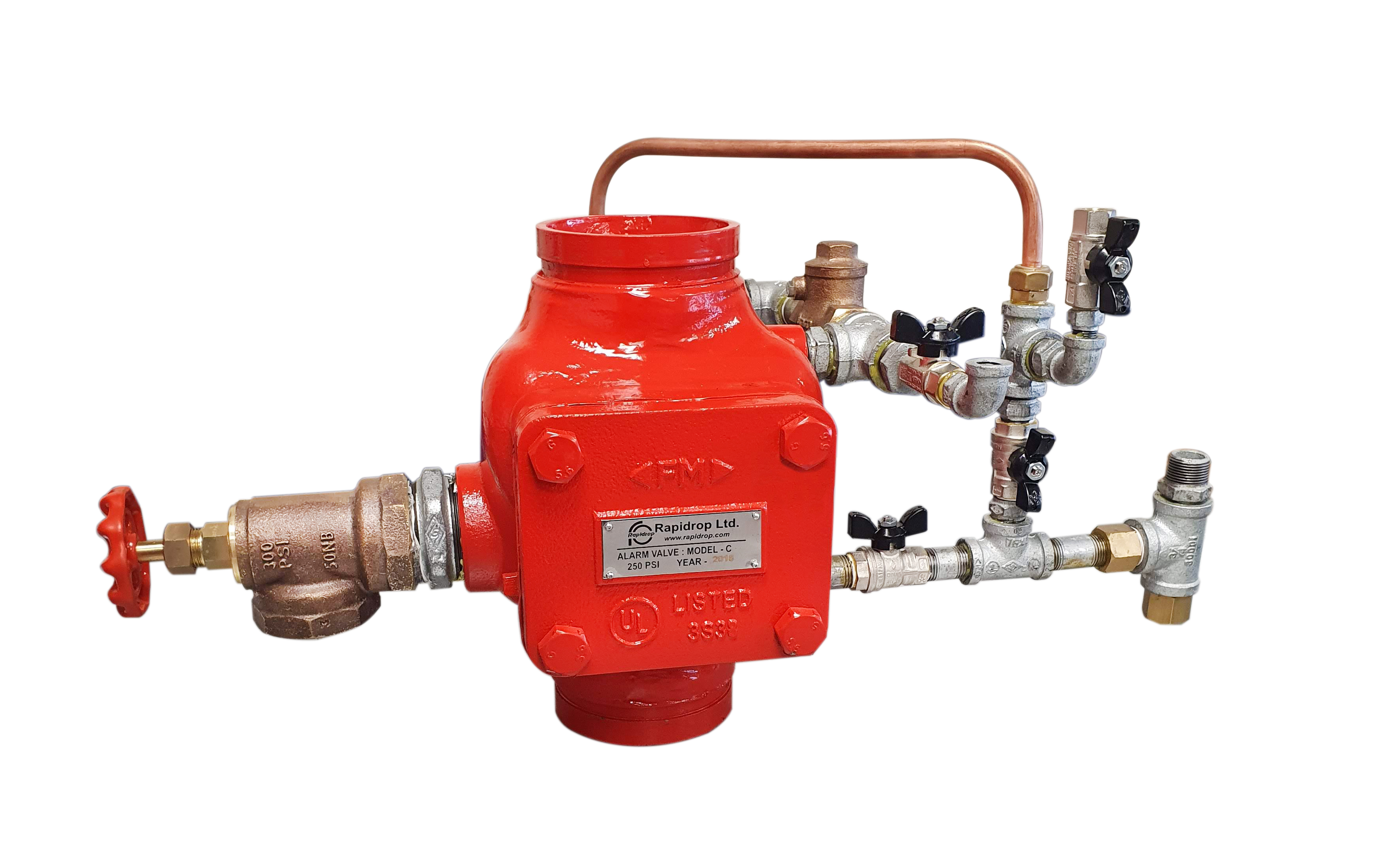

Rapidrop Alarm Valve model C is a double seated clapper check valve with grooved seat design which ensures positive water flow for alarm operation and is designed for installation in wet pipe sprinkler system.

External bypass prevents false alarm under all supply pressure condition. In the event of variable pressure condition, false alarm is prevented with the provision of retard chamber, thus the design allows for installation under both variable and constant supply pressure condition.

Operation of one or more automatic fire sprinklers causes the water to flow into the sprinkler system causing the alarm valve to open, allowing continuous flow of water into the system and transmittal of alarm, both electrical and mechanical.
