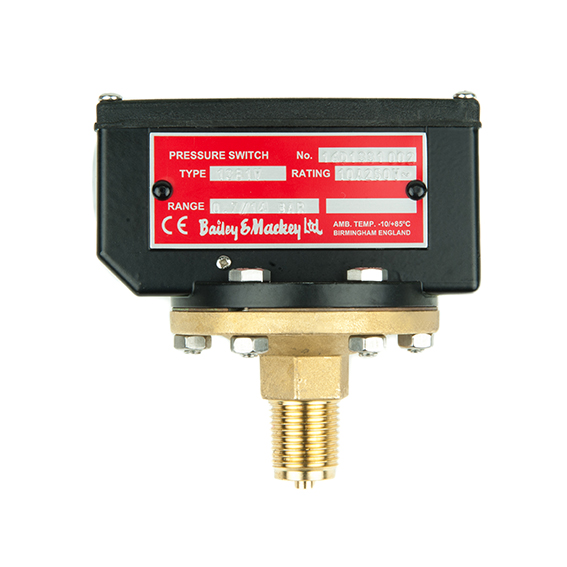

1381 and 1381V Pressure Switch

1381 and 1381V Pressure Switch

  • LPCB Logo Mid grey 085a-01.jpg
  • CE Logo Mid Grey 144.jpg
Factory settings 1381 @ 0.8 Bar rising, resets @ 0.4 Bar
1381V @ 5 Bar rising, resets @ 0.4 Bar
Accuracy +/- 2% of range
Enclosure IP65
Weight 0.9 Kg
Approvals LPCB, CE

Type 1381 and 1381V pressure switches are used for monitoring pressure to sound an alarm, operate a warning light or cut off an electrical supply as soon as the pressure rises to the set point. Each unit contains one double pole 250 volt, 5 amp switch (common, normally open and normally closed connections) activated by a diaphragm. ‘Standard Pressure Switch Wiring Instructions’ data sheet supplied with each unit.
