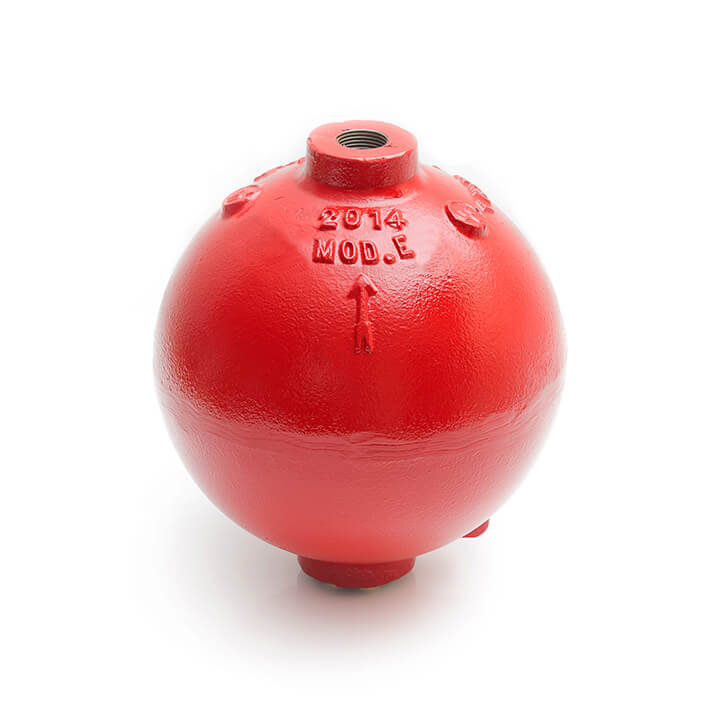

Model E Retard Chamber

Model E Retard Chamber

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • LPCB Logo Mid grey 556b.jpg
Connection 3/4" BSPT
Material Stainless steel
Capacity 3.8 litres
Working pressure 16 bar (250 psi)
Finish Red RAL 3001
Approvals FM Approved, UL Listed, LPCB

The RD Retarding Chamber is used with the Alarm Valve Trim when variable pressure is anticipated in the system. It is a holding tank to prevent the sounding of the sprinkler alarm during a water pressure surge, but will permit the sounding of the alarm on a sustained flow.

The retarding chamber is connected to the alarm port of the alarm valve through the restriction nozzle. The retarding chamber is part of UL Listed Alarm Valve Trim. The retarding chamber is made of stainless steel material.
