102 Wall Post Indicator

102 Wall Post Indicator

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey 144.jpg
  • gost logo 300.jpg
Body material Cast Iron
Coating Fusion bonded epoxy coating in accordance with AWWA C550
Approvals FM approved, UL Listed, Gost

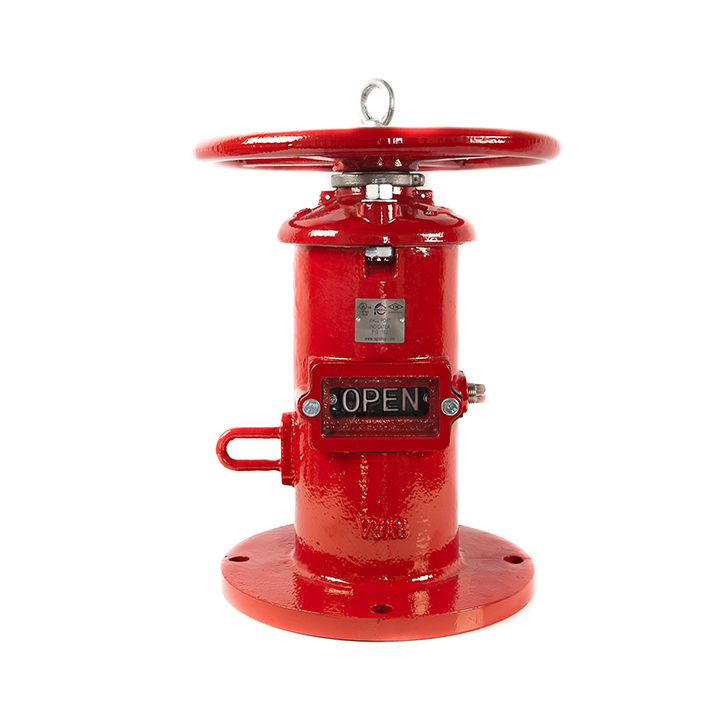

Rapidrop Model 102 Wall post indicators are UL Listed & FM approved. They are used to operate a post indicator valve (PIV) which is not accessible. There is an open / shut indicator window which will indicate if the PIV is open or closed. The handwheel can be secured with a chain and padlock to prevent unauthorised operation of the valve.

Material Specifications

Item Material
Locking Wrench Cast Iron, A126-B
Operating Nut Bronze B584
O-Ring Bruna N
Top Section Cast Iron A126-B
Window Glass Plexiglas
Open Target Cost Aluminium
Shut Target Cost Aluminium
Target Carrier Nut Bronze B584
Target Carrier Plate 1/16" Sheet Material
Clamp Target Retainer 302 Stainless Steel
Pan Head Zinc Plated Steel
Hex Nut Zinc Plated Steel
1/2" NPT Pipe Plug Malleable Iron
3/8" Eyebolt Forged Steel
Hex Capscrew Zinc Plated Steel
Stem 1" Sq. AISI 1020
Crane Coupling Cost Iron A126-B
Cotter Pin Brass
3/4" Hex Hd. Screw Zinc Plated Steel
Telescoping Barrel Cast Iron A126-B
Lower Standpipe 4" DI. CI 52ANSI A21.51
3/4" Hex Hd. Screw Zinc Plated Steel
Base Flange Cast Iron A126-B
5/8" Hex Capscrew Zinc Plated Steel
5/8" Hex Nut Zinc Plated Steel



Dimensions

Rapidrop Wall Post Indicator
