114GG NRS PIV Gate Valve (Grooved)

114GG NRS PIV Gate Valve (Grooved)

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey 144.jpg
Size range 100mm - 300mm (4" - 12")
Body type Grooved
Working pressure UL, FM 20.7 bar (300 psi)
Working temperature 0°C to 80°C (32°F to 176°F)
Body material Ductile Iron
Stem material Stainless steel
Standards AWWA C515 , AWWA C506
Approvals FM Approved, UL Listed

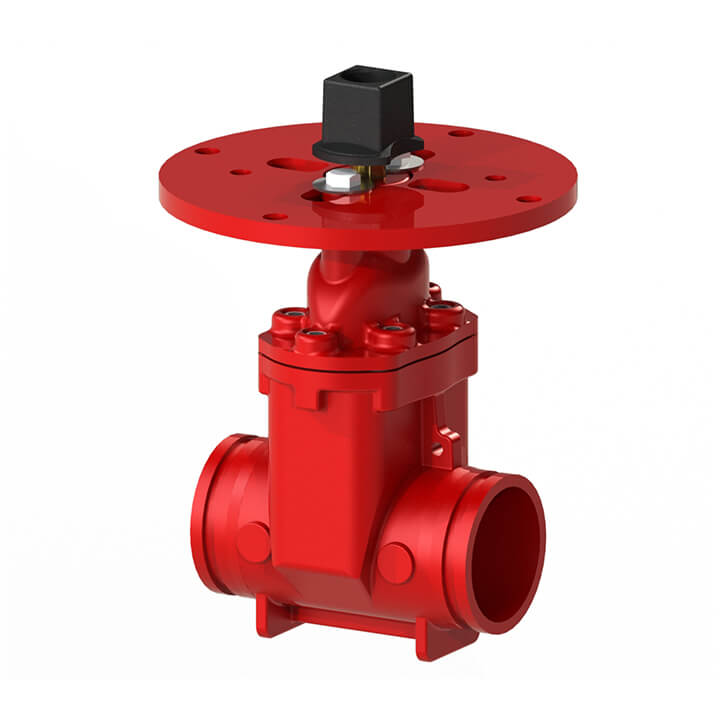

Rapidrop Fig.114GG Valve is a manually operated, non rising stem resilient wedge gate valve designed for use in fire protection systems for on/off operation only. The lightweight ductile iron body allows for easier handling and reduced shipping costs. Valves are suitable for both vertical and horizontal installation. Rapidrop
Fig.110 vertical post indicator and Rapidrop Fig.111 wall post indicator, are available separately.
Valve components are corrosion resistant or coated with a thermally applied fusion-bonded epoxy. The EPDM encapsulated ductile iron wedge with a compression mechanism is designed to achieve water tight sealing and low torque operation.

Dimensions

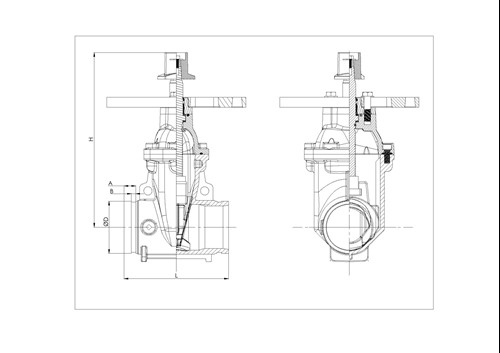

Rapidrop RD114GG NRS PIV Gate Valve (Grooved) dims

Sizes Dimensions (mm) Weight (kg)
in mm L H D A B
4" DN 100 229 395 114.3 15.88 9.52 28.1
6" DN 150 267 475 168.3 15.88 9.52 41.8
8" DN 200 292 585 219.1 19.05 11.13 68.2
10" DN 250 330 656 273.0 19.05 12.70 105.4
12" DN 300 356 751 323.9 19.05 12.70 155.9


Material Specification

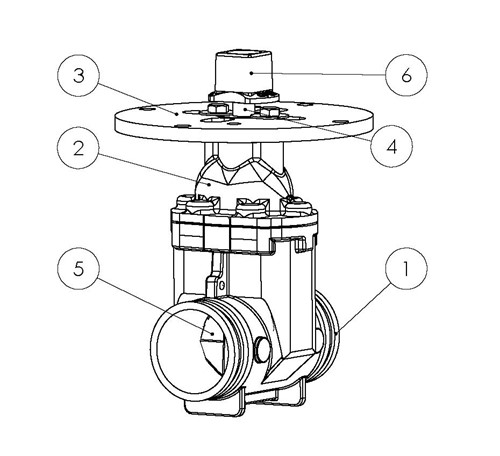

Rapidrop RD114GG NRS PIV Gate Valve (Grooved) spec

Description Material
Valve Body Ductile Iron
Bonnet Ductile Iron
Indicator Mounting Flange  Ductile Iron
Stem Stainless Steel
Disc Ductile Iron + EPDM
Drive Nut Ductile Iron
