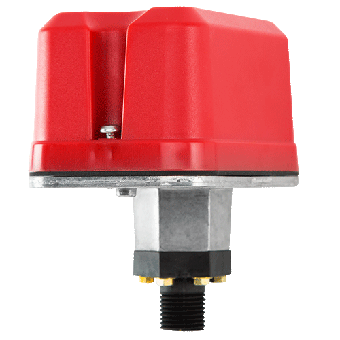

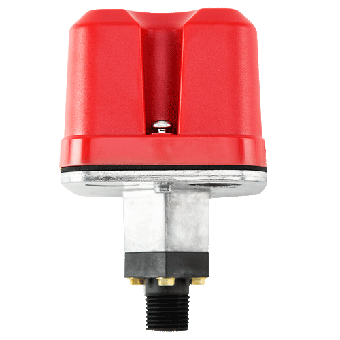

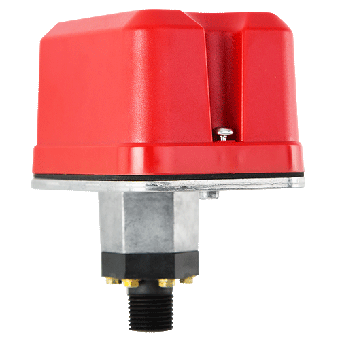

RDEPS40 Supervisory Pressure Switches

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
Maximum Operating Pressure 20.7 bar (300 psi)
Maximum Adjustment Pressure 0.7 to 6.8 bar (10 to 100 psi)
Differential Approximately 0.2 bar (3 psi) @ 0.7 bar (10 psi), 0.4 bar (6 psi) @ 6.8 bar (100psi)
Factory Setting RDEPS40-1 operates at decreasing pressure at 30 psi
RDEPS40-2 operates at increasing pressure at 50 psi and decreasing pressure at 30 psi
Switch Contact Ratings RDEPS40-1: One set SPDT (Form C)
RDEPS40-2: Two sets SPDT (Form C)
10.0 A, ½ HP @ 125/250 VAC 2.5 A @ 6/12/24 VDC
Pressure Connection ½˝ NPT male glass reinforced nylon
Operating Temperature Range Indoor or outdoor use: –40°C to 71°C (–40°F to 160°F)
Enclosure Rated UL 4x, NEMA 4 for indoor or outdoor use
Approvals FM Approved, UL Listed

RDEPS40 Series switches are designed for use in dry pipe systems or pressure tanks and water pressure supplies of automatic water control valves.

The RDEPS40-1 has a single SPDT switch while the EPS40-2 model contains two SPDT switches. The RDEPS40 Series features field adjustable pressure sensitivity to provide an alarm response between 10 and 100 psi. All models are factory set for use in a nominal 40 psi system. The RDEPS40-1 is factory set to respond at 30 psi at decreasing pressure while the EPS40-2 is factory set to respond at 50 psi on rising pressure and 30 psi at decreasing pressure. The pressure adjustment wheel requires no special tools and does not affect switch synchronization on the RDEPS40-2. The RDEPS40-1 and RDEPS40-2 supervisory pressure switches are NEMA 4 rated.
