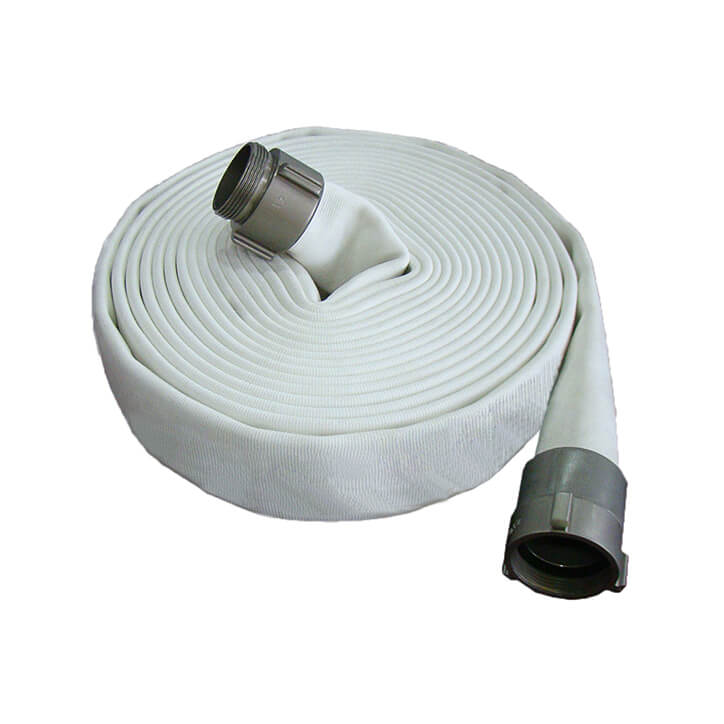

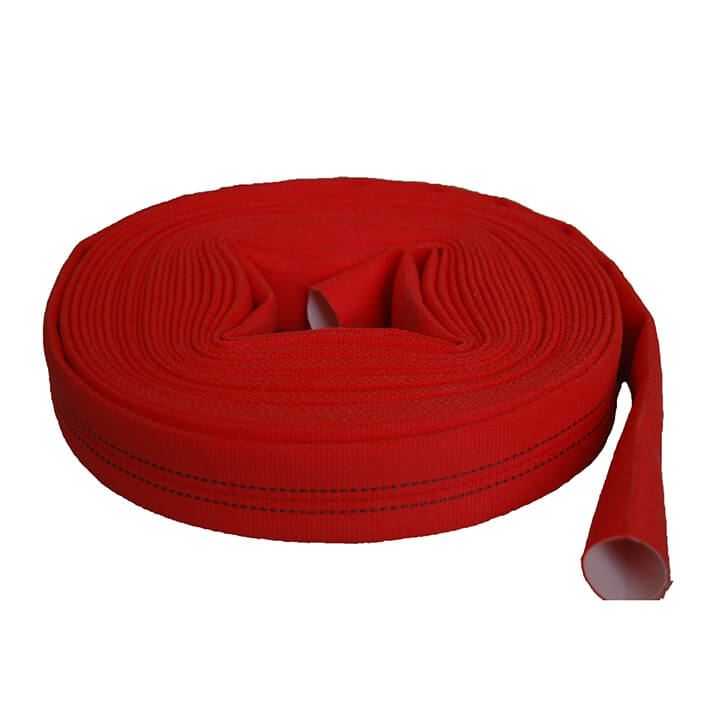

Lay Flat Fire Hose

  • FM Approved Logo Mid Grey 300.jpg
Material 100% Virgin Polyester Jacket, Twill or Plain Weave high performance in abrasion-resistance
Jacket Single / Double
Lining EPDM / PU
Colour White / Red - Other colour options available
Package Rolled, packed in carton or loaded on pallet
Standard Lengths 100 ft (30m) Other lengths available on request
Standards Fire Hose as per BS6391, instantaneous couplings as per BS 336.
Approvals FM Approved

High quality lay flat fire hose for all fire-fighting operations made from 100% Virgin Polyester Jacket with inner lining. Available in Single / Double Jacket for
Indoor / Outdoor Application. Light weight & flexible.

Specifications

Model ID Jacket Lining Material Max Working
Pressure
(psi)		 Weave Test
Pressure
(psi)		 Inlet Oulet Application
410 1 ½” Single Polyurethane 250 Plain 500 Female NHT Female BS336 Rack Hose
411 1 ½” Single EPDM 250 Plain 500 Female NHT Female BS336 Rack Hose
412 1 ½” Single Polyurethane 250 Plain 500 Female NHT Female BS336 Attack Hose
413 1 ½”
1 ¾”
2 ½		 Single EPDM 250 Plain 500 Female NHT
Female NHT
Male BS336		 Female BS336 Attack Hose
414 1 ½”
1 ¾”
2 ½”		 Double Polyurethane 400 Plain 500 Female NHT
Female NHT
Male BS336		 Female BS336 Attack Hose
415 1 ½”
1 ¾”
2 ½”		 Double EPDM 400 Plain 500 Female NHT
Female NHT
Male BS336		 Female BS336 Attack Hose
