Dry Riser Vertical Outlet Full Cabinet

Cabinet type Outlet full cabinet
Size Height 630mm (24.8")
Width 460mm (18.1")
Depth 275mm (10.8")
Finish Red RAL 3002 or Stainless steel (Bespoke finishes available)
Standards Designed & manufactured to BS5041 part 4

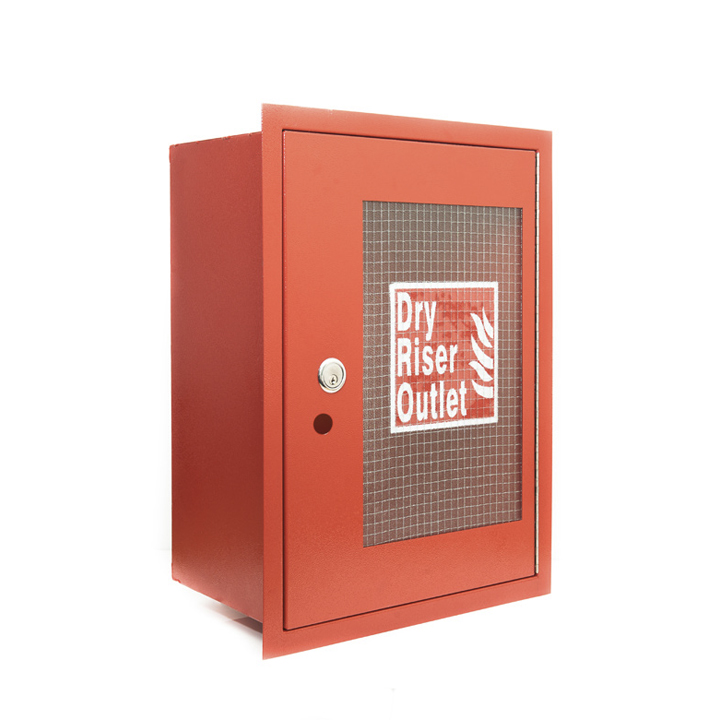

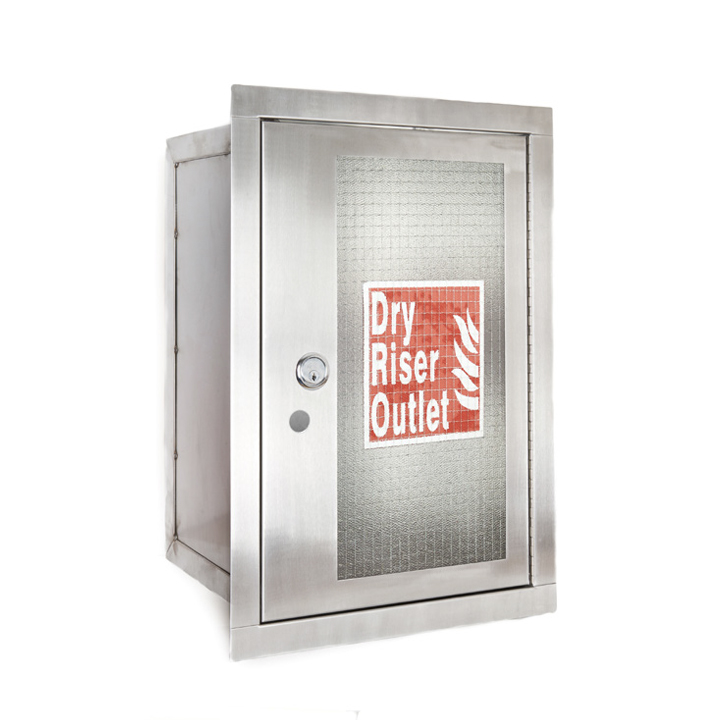

The DRC008 & DRC009 vertical outlet cabinets are full cabinets designed for easy access to the dry riser outlet valve. The cabinet
has a 38mm surrounding flange and is available in red RAL3002 (DRC008) or in Stainless Steel (DRC009) finish.

DRC008 cabinet is painted with Epoxy RAL3002 powder paint with UV protection to prevent colour fading.

The cabinets have a wired Georgian glass door complete with a slam shut lock and stainless steel piano hinge.

Dimensions

Dimensions Approx Weight
Kg
High mm Width mm Depth mm
630 460 275 20



Specifications

 DRC004W Red / DRC005W Stainless Steel
Cabinet & Door Carbon steel / Stainless steel 304
Finish Red RAL 3002 / Stainless steel
Architrave 30mm wide all round
Glass 6mm Georgian wired
Lock Slam shut lock keyed alike
Hinge Stainless steel piano hinge


Material Specifications

Part Description Qty Material
Cabinet Shell 1 Cold Rolled Low Carbon Stee
Hinge 1 SUS304
Blind RIvet d 3.2 10 Aluminium
Door 1 Cold Rolled Low Carbon Stee
Press Plate 1 1.5mm Colour Zinc Plate
M5 Hexagon Locking Nut 6 Copper
Wire Glass  1 Glass 575 x 332 x 6mm
Latch Lock 1 Assembly
M4 x 16 Pan Head Screw 3 Steel
Signage 1
