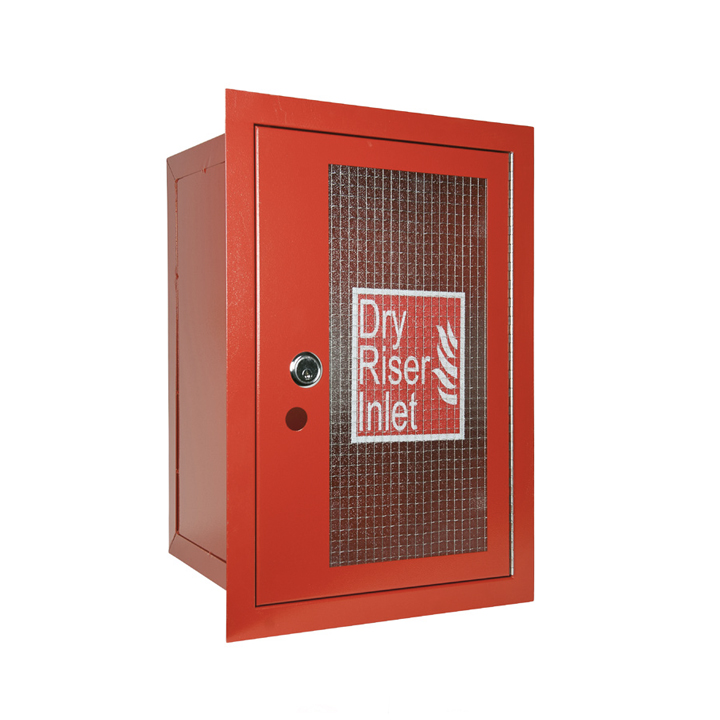

10.14 [RDC003] [Vertical Inlet Full Cabinet for Dry Riser - Red].jpg 10.14 [DRC002] [Vertical Inlet Full Cabinet For Dry Riser - Stainless Steel].jpg

Dry Riser Vertical Inlet Full Cabinet

Cabinet type Vertical Inlet full cabinet
Size Height 595mm (23.4")
Width 395mm (15.5")
Depth 295mm (11.6")
Finish Red RAL 3002 or Stainless steel (Bespoke finishes available)
Standards Designed & manufactured to BS5041 part 5

The DRC002 & DRC003 vertical inlet cabinets are designed to be recessed into the wall for easy access to the inlet breeching valve. The cabinet has a 38mm surrounding flange and is available in red RAL3002 (DRC002) or in Stainless Steel (DRC003) finish.

DRC002 cabinet is painted with Epoxy RAL3002 powder paint with UV protection to prevent colour fading.

The inlet cabinet and breeching inlet should be positioned as closely as possible to the rising main in order to reduce the pressure loss and within easily accessible reach of the attending fire appliance which should be in an un-obscured sight of fire crews and no more than 18 metres away from the nearest vehicular access.

The cabinets have a wired Georgian glass door complete with a slam shut lock and stainless steel piano hinge.

Dimensions

Dimensions Approx Weight
Kg
High mm Width mm Depth mm
595 395 295 20


Specifications

DRC002 Red / DRC003 Stainless Steel
Cabinet & Door Carbon Steel / Stainless Steel 304
Finish Red RAL 3002 / Stainless Steel
Surrounding Flange 38mm Wide All Around
Glass 6mm Georgian Wired
Lock Slam Shut Lock Keyed Alike
Hinge Stainless Steel Piano Hinge


Material Specifications

Part Description Qty Material
Cabinet Shell 1 Carbon Steel / Stainless Steel
Hinge 1 Stainless Steel 304
Rivet 10 Aluminium
Door 1 Carbon Steel / Stainless Steel
Press Plate 1 Carbon Steel / Stainless Steel
Locking Nut 6 Copper
Wire Glass 1 Glass 465 x 340 x 6mm
Latch Lock 1
Lock Screw 3 Steel
Signage  1
