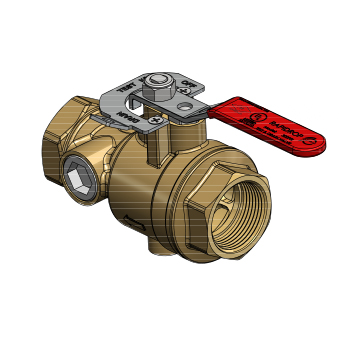

Test & Drain Valve Model 802

The Rapidrop Model 802 test and drain valve for sprinkler systems combines the functions of test and drain for wet sprinkler systems. These valves have forged brass body with chrome plate brass ball valve and PTFE seats. The valves complies with the requirements of NFPA 13, NFPA 13R and NFPA 13D. Model 802 valves are single handle ball valves with three working positions. They include tamper resistant test orifice and sight glass for the visual control.

Product Specifications
Test and drain valve for sprinkler systems combines the functions of test and drain for wet sprinkler systems, complies with the
requirements of NFPA 13, NFPA 13R and NFPA 13D and is FM Approved and UL Listed. Main feature as following:

• BSP threads (Optional NPT upon request)
• Sizes DN25 - DN50 (1” - 2”)
• Available K factors 3/8” (K2.8), 7/16” (K4.2), 1/2” (K5.6), 17/32” (K8.0).
• Forged brass body
• Chrome plate brass ball valve
• PTFE seats
• Single handle ball valves with three working positions
• Lockable ‘OFF’ position
• Tamper resistant test orifice and sight glass included
