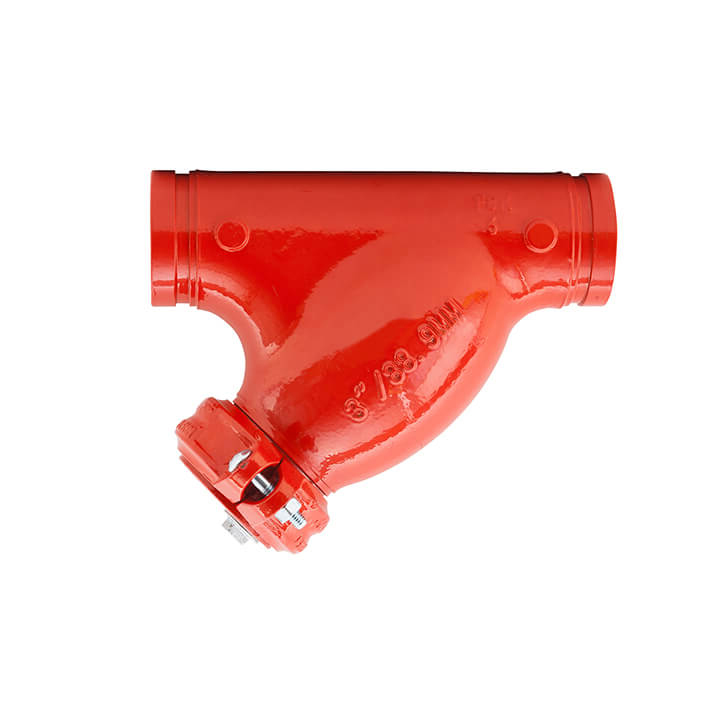

701 Y-Type Strainer (Grooved)

701 Y-Type Strainer (Grooved)

  • UL Logo Mid Grey.jpg
Size range 50mm (2”) to 300mm (12”)
Body type Grooved
Maximum working pressure 20.7 bar (300 PSI)
Working temperature 0°C to 80°C (32°F to 176°F)
Body material Ductile Iron
Approvals UL Listed

Rapidrop Figure 701 Strainers filter out the dirt, rust, and other debris in the water flow protecting the valves and other equipment in the piping system.
All sizes are equipped with a grooved coupling which allows easy removal of the retainer cap and stainless steel screen for cleaning.
Rapidrop Figure 701 Strainer should be installed horizontally with the cap facing downwards with access to remove the basket/screen.

Sizes & Dimensions

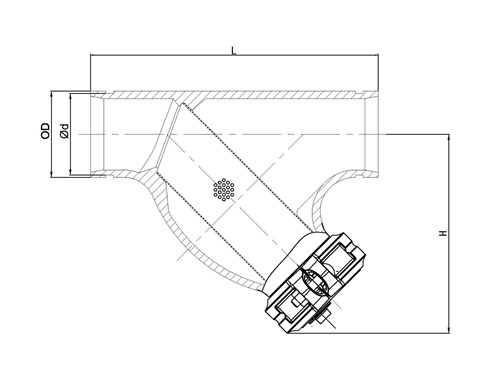

Rapidrop RD701 Y-Type Strainer (Y Strainer) Grooved

Sizes Dimensions (mm) Weight
Inch mm L OD D H
2” DN 50 247.5 60.3 57.15 170 3.8
2.5” DN 65 273 73.0 69.09 185 6.2
2.5” DN 65 273 76.1 72.26 185 6.2
3” DN 80 298.5 88.9 84.94 207 9.2
4” DN 100 362 114.3 110.08 255 15.3
5” DN 125 419 139.7 135.48 286 21.8
5” DN 125 419 141.3 137.03 286 21.8
6” DN 150 470 165.1 160.90 340 32.7
6” DN 150 470 168.3 163.96 340 32.7
8” DN 200 609.5 219.1 214.40 420 70.9
10” DN 250 686 273.0 268.28 482 108.6
12” DN 300 762 323.9 318.29 580 159.5



Material Specifications

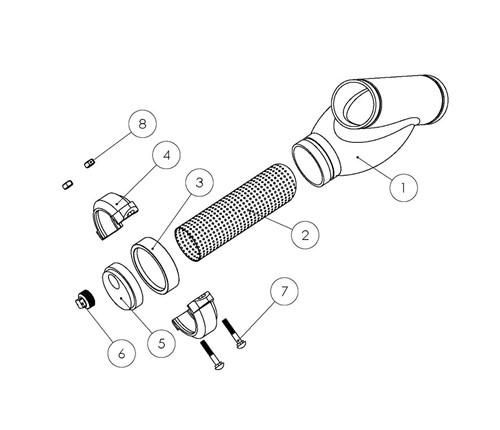

RD701 Y-Type Strainer (Y Strainer) (Grooved) Material specifications

No Description Material
1 Valve Body Ductile Iron 65-45-12
2 Screen Stainless Steel
3 Gasket EPDM
4 Grooved Coupling Ductile Iron 65-45-12
5 Cap Ductile Iron 65-45-12
6 Drain Plug Malleable Iron Galvanized
7 Bolts Carbon Steel Zinc Plated
8 Nuts Carbon Steel Zinc Plated
