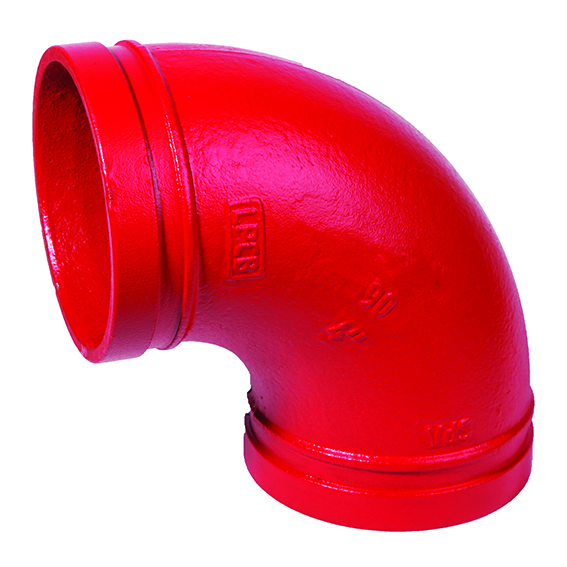

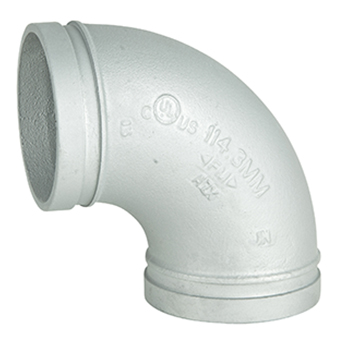

8.53 [Model 90 &90S Grooved 90º Elbow] [FM, UL, VdS] Red LR [reshoot].jpg 8.53 [Model 90 &90S Grooved 90º Elbow] [FM, UL, VdS] Galvanised.jpg

90S Grooved 90º Elbow

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • VdS Logo mid grey 2.jpg
  • cnbop.png
Size range DN50 to DN200 (2" to 8")
Working pressure 20.6 bar (300 psi)
Radius type Standard
Material Ductile Iron
Finish Red painted or Galvanised
Approvals FM Approved, UL Listed, VdS

Rapidrop Grooved couplings and fittings are used in assembly of grooved piping systems. They are available in painted and galvanised finishes and are FM, UL and VdS approved. The Rapidrop type 300PX equal tees are pressure rated to 300psi and are used to create an oulet or a change of direction is required in the pipework. They can be used in standard and thin walled pipes.

Sizes & Dimensions

Nominal Size
mm/in		 Pipe
O.D
mm/in		 Working
Pressure
PSI/MPa		 Dimensions
L
mm/in
50
2		 60.3
2.375		 300
2.07		 70
2.75
65
2½		 76.1
3.000		 300
2.07		 76
3.00
80
3		 88.9
3.500		 300
2.07		 85.5
3.37
100
4		 114.3
4.500		 300
2.07		 101
3.98
125
5		 139.7
5.500		 300
2.07		 124
4.88
150
6		 168.3
6.625		 300
2.07		 140
5.50
200
8		 219.1
8.625		 300
2.07		 165
6.50
