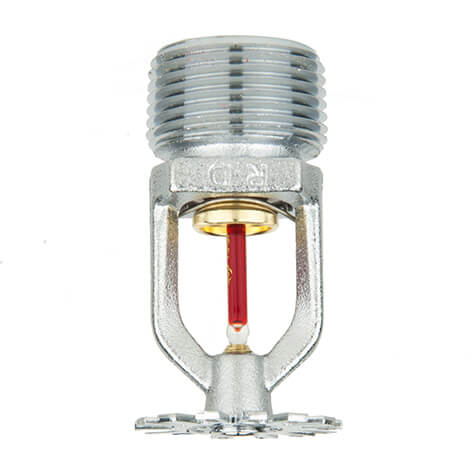

RD043 SSP Pendent Quick Response Sprinkler
| K factor | 115 (8.0) |
|---|---|
| Standard Orifice Size | 20mm (¾”) |
| Standard Thread Size | ¾” NPT |
| Response | Quick Response |
| Bulb | 3mm |
| Maximum Working Pressure | 12.1 bar (175 psi) |
| Finish | Brass, chrome and white paint finish. Special RAL colours available on request |
| Approvals | FM, UL, LPCB, VdS, CE, UKCA, Gost |
Rapidrop RD043 fire sprinklers are pendent (SSP) quick response, frangible glass bulb automatic sprinklers.
They are CE Marked, LPCB, VdS, FM approved, UL listed, standard orifice fire sprinklers for installation in fire sprinkler systems.
SSP sprinklers produce a hemispherical water distribution pattern below the deflector. In the instance of fire, the heat causes the fluid in the glass bulb to expand which shatters the glass and releases the spring seal assembly. Water flows from the orifice onto the sprinkler deflector which diffuses the water into a uniform spray pattern which extinguishes or controls the fire.
Specifications
| K factor | K115 (K8.0) |
| Standard Orifice Size | 20mm (¾”) |
| Thread Size | ¾” NPT, R3/4 (¾” BSPT) available on special order |
| Max. Working Pressure | 12 bar (175 psi) |
| Min. Operating Pressure | 0.5 bar (7psi) |
| Factory Pressure Test | 34 bar (500 psi) |
| Weight | 79 g (2.8 oz) |
| Fitted with Bulb Protector | Remove after installing sprinkler |
Operating Temperatures
| Nominal Operating Temperature | Bulb Colour |
| 57ºC (135ºF) | Orange |
| 68ºC (155ºF) | Red |
| 79ºC (175ºF) | Yellow |
| 93ºC (200ºF) | Green |
| 141ºC (286ºF) | Blue |
RD043 Design Coverage
Spray Pendent Sprinkler for installing only in pendent position giving hemispherical discharge below the deflector with little or no water being discharged upwards. For sprinkler coverage area and placement refer to NFPA 13 or EN 12845 standards or other Installation rules for automatic sprinkler systems as required by the authority having jurisdiction. The following details are provided for information only.
Rapidrop K115 (K8.0) Sprinkler Flow Characteristics
- Data Sheet 4.51 D [EN]
- Data Sheet 4.51 E [PL]
- Data Sheet 4.51 A [SR]
- Data Sheet 4.51 B [SWE]
- Data Sheet 4.51 D [RO]
- RD043 Sprinklers - FM Certificate
- RD043 Sprinklers - UL Certificate
- RD043 Sprinklers - ULc Certificate
- RD043 Sprinklers - LPCB Certificate
- RD043 Sprinklers - VdS Certificate
- RD043 Sprinklers - CE Certificate
- RD043 Sprinklers - Gost certificate
- RD041-45 / RD052-55 - UKCA Certificate
