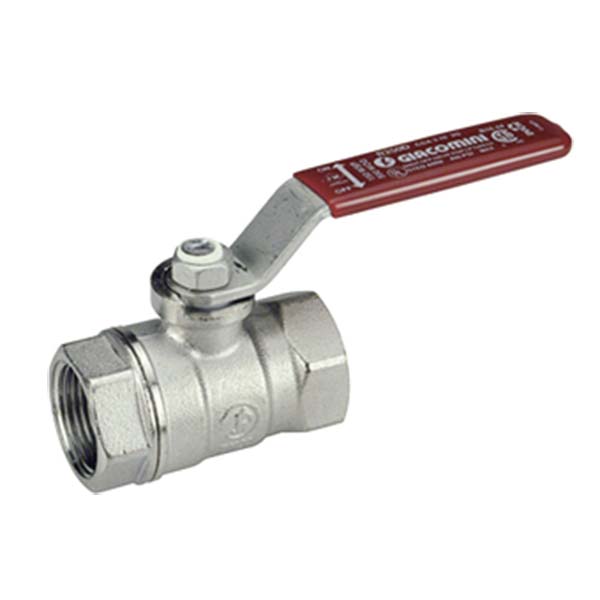

R250D Standard Ball Valve
| Approvals | FM Approved, UL Listed |
|---|---|
| Available Sizes | DN15 (1/2") to DN50 (2") |
| Working pressure | Max working pressure at 20ºC 42 bar (4.2 MPa) for 1/2" - 3/4" 35 bar (3.5 MPa) for 1" - 11/4" - 11/2" - 2" |
| Working Temperature | Minimum working temperature: -20ºC with 50% glycol solutions. |
Ball valve with female-female connections for water based fire protection and mechanical services. UNI EN 12165 CW617N chrome-plated brass. Standard port. Steel lever handle with pvc anticorrosion coating. Stem with double O-ring. Nut with anticorrosion coating, with guarantee seal and hologram.
Features
- Suitable for water based fire protection and mechanical services.
- Connections female-female BSPP Thread (ISO 228)
- Standard Port
- UNI EN 12165 CW617N chrome-plated brass valve
- Stem with double O-ring
- Nut with anti-corrosion coating, with guarantee seal and hologram
- Steel lever handle with pvc anti-corrosion coating
