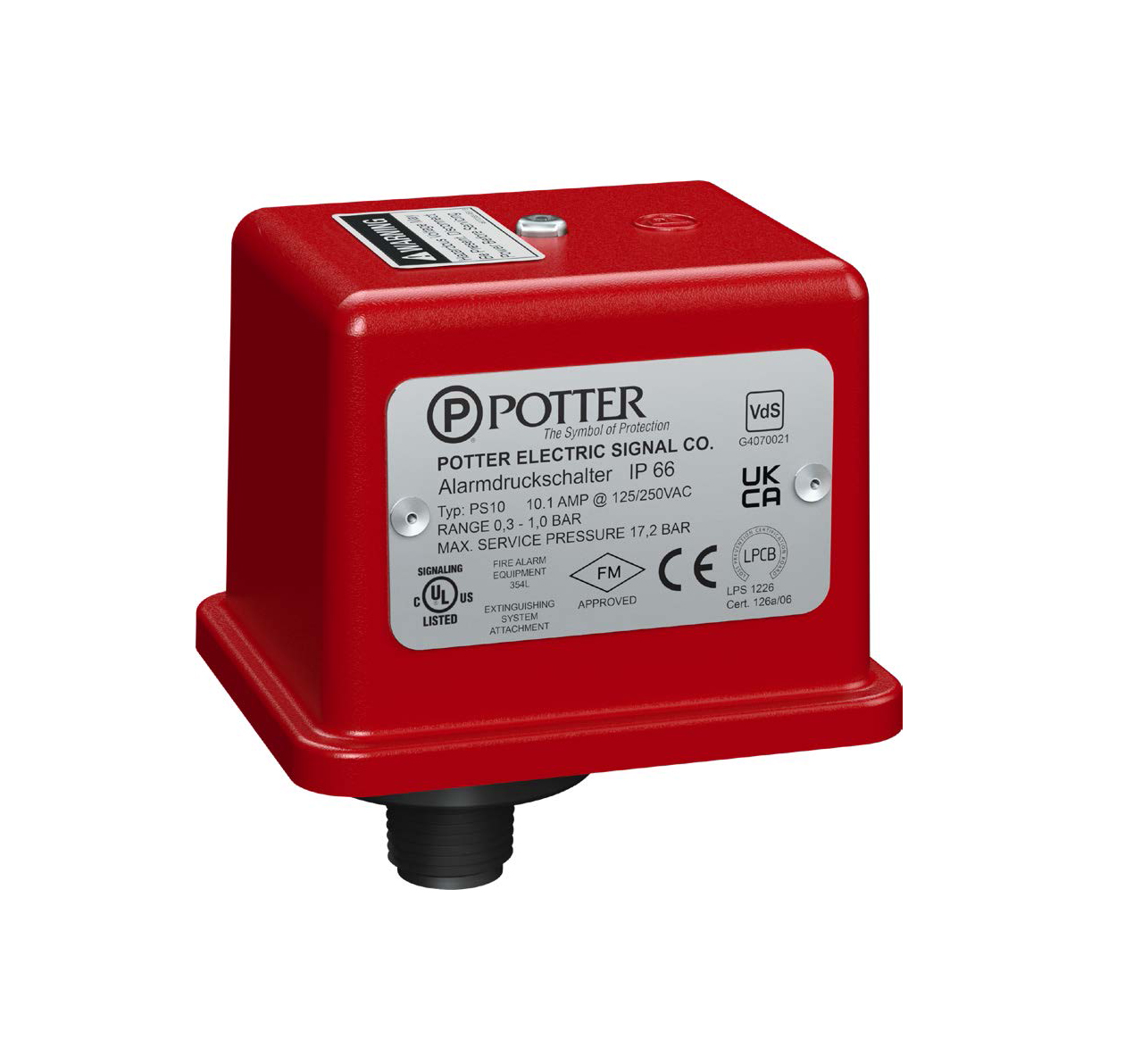

PS10-1 & PS10-2 Pressure Switch
| Max Working Pressure | UL & FM - 20.7 bar (300 psi) LPCB - 17.2 bar (250 psi) VdS - 16 bar (230 psi) |
|---|---|
| Connection | Nylon 1/2” NPT Male |
| Adjustment Range | 0.27 - 1.03 bar (4 - 15 psi) |
| IP Rating | NEMA 4/IP66 Rated enclosure - indoor or outdoor when used with NEMA 4 conduit fittings |
| Approvals | FM Approved, UL Listed, LPCB, VdS, CE, CNBOP & UKCA Certified |
The PS10 Series Pressure Actuated Switches are designed for the detection of a waterflow condition in automatic fire sprinkler systems of particular designs such as wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves. The PS10 is also suitable to provide a low pressure supervisory signal; adjustable between 0.27 and 1.03 bar (4 and 15 psi).
