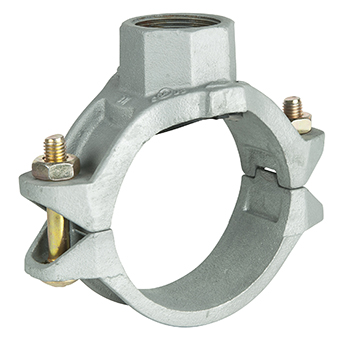

3J Mechanical Tee Threaded Outlet

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • VdS Logo mid grey 2.jpg
  • CNBOP-B Logo - Grey.jpg
Size range DN50 x DN25 to DN100 x DN32 (2" x 1" to 4" x 1¼")
Maximum working pressure Up to 20.7 bar (300 psi)*

*depending on size and certification, please refer to Data Sheet 8.61
Working temperature -34°C to 110°C (-30°F to 230°F)
Gasket type EPDM
Outlet connection Threaded
Material Ductile Iron
Finish Red painted or Galvanised
Approvals FM Approved, UL Listed, VdS, CNBOP

Rapidrop Grooved couplings and fittings are used in the assemby of grooved piping systems. They are available in painted and galvanised finishes and are FM, UL, VdS and CNBOP approved. The Rapidrop type 3J Mechanical tees are pressure rated to 300psi and are used to create a quick and easy pipe oulet. They can be used in standard and thin walled pipes.

Sizes & Dimensions

Nominal
Size
mm/in
Pipe
O.D
mm/in
Working
Pressure
PSIMPa
Hole Dia
mm/in
+1.6.0/+0.063.0
Dimensions Bolt Size
A
mm/in
B
mm/in
C
mm/in
D
mm/in
No Size
mm
50 × 25
2 × 1
60.3 × 33.7
2.375 × 1.315
300
2.07
38
1.50
116
4.57
68
2.68
60
2.36
39
1.54
3/8 × 55
M10X57
50 x 32
2 × 1¼
60.3 × 42.4
2.375 × 1.660
300
2.07
45
1.75
116
4.57
76
2.99
65
2.56
39
1.54
3/8 × 55
M10X57
50 × 40
2 × 1½
60.3 × 48.3
2.375 × 1.900
300
2.07
45
1.75
116
4.57
76
2.99
65
2.56
39
1.54
3/8 × 55
M10X57
65 × 32
76.1 × 1¼
76.1 × 42.4
3.000 × 1.660
300
2.07
51
2.00
137
5.39
84.5
3.33
75
3.05
49.5
1.95
1/2 × 70
M12X70
65 × 40
76.1 × 1½
76.1 × 48.3
3.000 × 1.900
300
2.07
51
2.00
137
5.39
84.5
3.33
61.5
2.42
49.5
1.95
1/2 × 70
M12X70
80 × 25
3 × 1
88.9 × 33.7
3.500 × 1.315
300
2.07
38
1.50
152
5.98
72.5
2.85
80
3.15
56.5
2.22
1/2 × 75
M12X76
80 × 32
3 × 1¼
88.9 × 42.4
3.500 × 1.660
300
2.07
51
2.00
152
5.98
85.5
3.37
80
3.15
56.5
2.22
1/2 × 75
M12X76
80 × 40
3 × 1½
88.9 × 48.3
3.500 × 1.900
300
2.07
51
2.00
152
5.98
85.5
3.37
80
3.15
56.5
2.22
1/2 × 75
M12X76
80 × 50
3 × 2
88.9 × 60.3
3.500 × 2.375
300
2.07
64
2.50
152
5.98
98
3.86
80
3.15
56.5
2.22
1/2 × 75
M12X76
100 × 25
4 × 1
114.3 × 33.7
4.500 × 1.315
300
2.07
38
1.50
188
7.40
78.5
3.09
93
3.66
70
2.76
1/2 × 75
M12X76
100 × 32
4 × 1¼
114.3 × 42.4
4.500 × 1.660
300
2.07
51
2.00
188
7.40
89
3.50
95
3.74
70
2.76
1/2 × 75
M12X76
100 × 40
4 × 1½
114.3 × 48.3
4.500 × 1.900
300
2.07
51
2.00
188
7.40
89
3.50
97
3.82
70
2.76
1/2 × 75
M10X76
100 × 50
4 × 2
114.3 × 60.3
4.500 × 2.375
300
2.07
64
2.50
188
7.40
104.5
4.11
100
3.94
70
2.76
1/2 × 75
M10X76
100 × 65
4 × 2½
114.3 × 76.1
4.500 × 3.000
300
2.07
70
2.75
188
7.40
104.5
4.11
102
4.02
70
2.76
1/2 × 75
M10X76
100 × 80
4 × 3
114.3 × 88.9
4.500 × 3.500
300
2.07
89 3.50 188
7.40
128
5.039
102
4.02
70
2.76
1/2 × 75
M10X76
125 × 32
139.7 × 1¼
139.7 × 42.4
5.500 × 1.660
300
2.07
51
2.00
221.5
8.72
95
3.74
112
4.41
84
3.31
5/8 × 105
M16X105
150 × 32
6 × 1¼
168.3 × 42.4
6.500 × 1.660
300
2.07
51
2.00
247
9.72
95
3.74
122
4.80
98.5
3.88
5/8 × 105
M16X105
150 × 40
6 × 1½
168.3 × 48.3
6.500 × 1.900
300
2.07
51
2.00
247
9.72
95
3.74
122
4.80
98.5
3.88
5/8 × 105
M16X105
150 × 50
6 × 2
168.3 × 60.3
6.625 × 2.375
300
2.07
64
2.50
247
9.72
112.5
4.43
132
5.20
98.5
3.88
5/8 × 105
M16X105
150 × 65
6 × 2½
168.3 × 76.7
6.625 × 3.000
300
2.07
70
2.75
247
9.72
112.5
4.43
132
5.20
98.5
3.88
5/8 × 105
M16X105
150 × 80
6 × 3
168.3 × 88.9
6.625 × 3.500
300
2.07
89
3.50
247
9.72
132
5.20
140
5.51
98.5
3.88
5/8 × 105
M16X105
200 × 50
8 × 2
219.1 × 60.3
8.625 × 2.375
300
2.07
64
2.50
320
12.60
117
4.61
160
6.30
125
4.92
3/4 × 115
M20X115
200 × 65
8 × 2½
219.1 × 76.1
8.625 × 3.000
300
2.07
70
2.75
320
12.60
118
4.65
160
6.30
125
4.92
3/4 × 115
M20X115
200 × 80
8 × 3
219.1× 88.9
8.625 × 3.500
300
2.07
89
3.50
320
12.60
136.5
5.37
160
6.30
125
4.92
3/4 × 115
M20X115



Specified Bolt Torque ANSI BOLTS

Bolt Size
Inch
Specified Bolt Torque
Lbs-Ft. N.m
3/8 30-45 40-60
1/2 80-100 110-135
5/8 100-130 135-175
3/4 - -
7/8 - -
