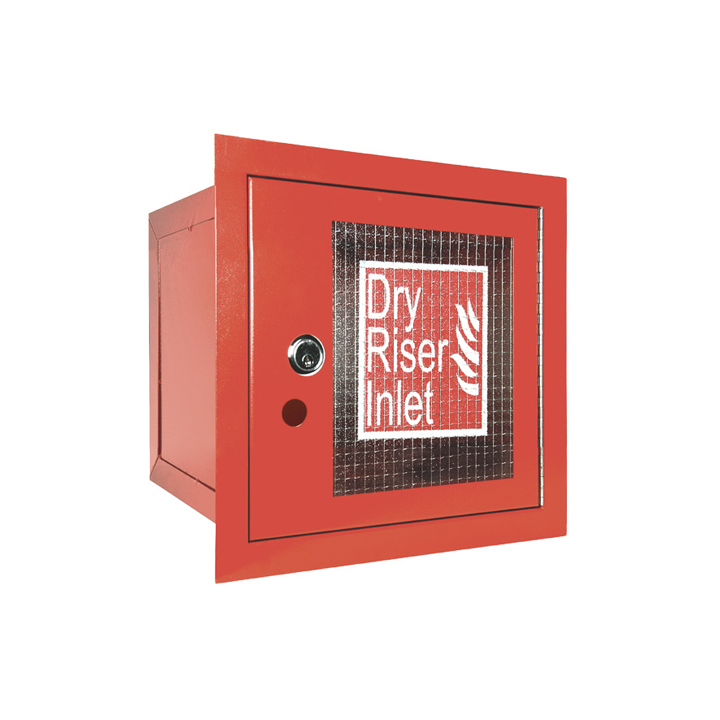

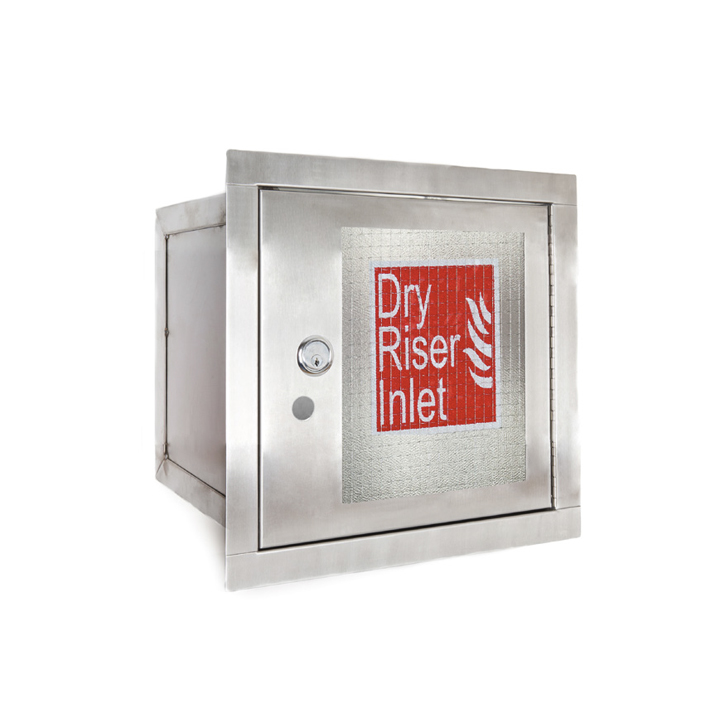

10.12 [DRC006] 4 Way Inlet Cabinet - Red.jpg 10.12 [DRC006] 4 Way Inlet Cabinet - Stainless Steel.jpg

Dry Riser 4 Way Inlet Full Cabinet

Cabinet type Vertical Inlet full cabinet
Size Height 595mm (23.4")
Width 595mm (23.4")
Depth 295mm (11.6")
Finish Red RAL 3002 or Stainless steel (Bespoke finishes available)
Standards Designed & manufactured to BS5041 part 5

The DRC006 & DRC013 inlet cabinets are designed to be recessed into the wall for easy access to the inlet breeching valve. The cabinet has a 38mm surrounding flange and is available in red RAL3002 (DRC006) or in Stainless Steel (DRC013) finish.

DRC006 cabinet is painted with Epoxy RAL3002 powder paint with UV protection to prevent colour fading.

The inlet cabinet and breeching inlet should be positioned as closely as possible to the rising main in order to reduce the pressure loss and within easily accessible reach of the attending fire appliance which should be in an un-obscured sight of fire crews and no more than 18 metres away from the nearest vehicular access.

The cabinets have a wired Georgian glass door complete with a slam shut lock and stainless steel piano hinge.

Dimensions

Dimensions Approx Weight
Kg
High mm Width mm Depth mm
595 595 295 20


Specifications

 DRC006 Red / DRC013 Stainless Steel
Cabinet & Door Carbon steel / Stainless steel 304
Finish Red RAL 3002 / Stainless steel
Architrave 30mm wide all round
Glass 6mm Georgian wired
Lock Slam shut lock keyed alike
HInge Stainless steel piano hinge


Material Specifications

Part Description Qty Material
Cabinet Shell 1 Carbon steel/
Stainless steel 304
Hinge 1 Stainless steel 304
Blind Rivet d 3.2 10 Aluminium
Door 1 Carbon steel/
Stainless steel 304
Press Plate 1 Carbon steel/
Stainless steel 304
Locking Nut 6 Copper
Wire Glass 1 Glass 540 x 465 x 6mm
Lock Screw 3 Steel BZP
