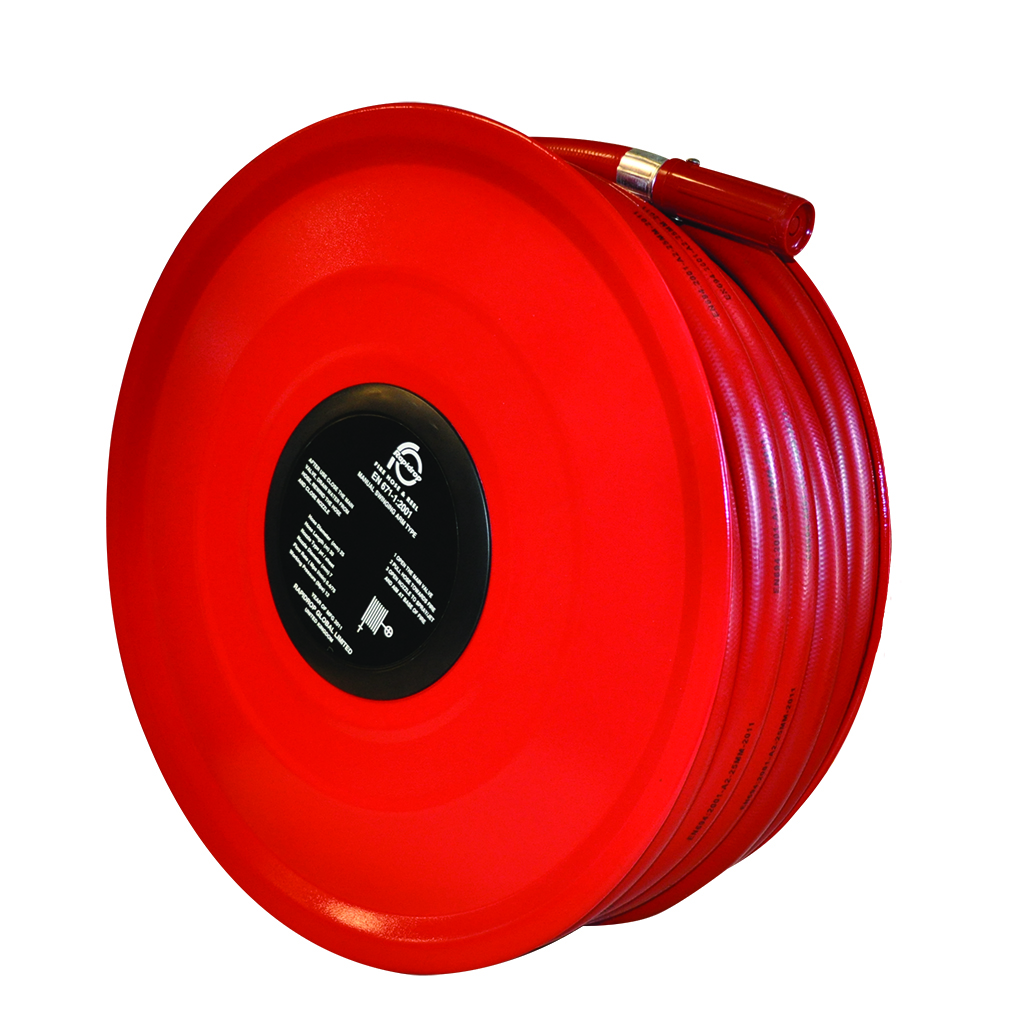

Fire Hose Reel

Fire Hose Reel

  • LPCB Logo Mid grey - 566g01-05.jpg
Size range: (19mm, 25mm) x 30 metre
Body type Hose pipe is 3 ply with two synthetic rubber layers and textile reinforcement
Working pressure 12 bar
Inlet connection 1" BSPT
Outlet connection Jet Spray Nozzle
Material Synthetic rubber with textile reinforcement
Finish Coated with UV inhibitor to make it color fast.
Approvals LPCB

Rapidrop Hose reels are designed and manufactured as per BSEN 671-1:2001. Hose reels are made of 1.2mm thick ribbed side plates for better strength and coated with UV resistant epoxy powder coating in Red (RAL 3000). Automatic Hose reels are supplied with integrated automatic stop valve which will open at two revolutions of the wheel.  Full Brass internal waterways to ensure corrosion free life. Inlet hose pipes are supplied with nipples which once screwed will not result in leakage. Flexible Inlet pipe to facilitate Left/Right and Top/Bottom outlet pipe connections.

Hosepipe used is 3 ply with two synthetic rubber layers and textile reinforcement approved to BS EN 694:2001 by LPCB.

Working Pressure 12 bar and burst pressure of 42 bar. The outer layer is protected with UV inhibitor to make it colourfast. Every Hose reel is hydrostatically tested for 18bar.

Specifications

Type Model No. Hose Dia x Length Reel Dia x Depth (mm) Recess/Wall Opening Dimensions LPCB Certificate No:
Swing Manual Fig. 401 19 mm x 30 m 555 x 250 750 x 750 x 300 556G 01
Swing Automatic Fig. 403 19 mm x 30 m 555 x 250 750 x 750 x 300 556G 03
Swing Manual Fig. 402 25 mm x 30 m 600 x 250 750 x 750 x 300 556G 02
Swing Automatic Fig. 404 25 mm x 30 m 600 x 250 750 x 750 x 300 556G 04
Swing Manual Fig. 405 33 mm x 30 m 600 x 350 915 x 775 x 490 556G 05
Swing Manual Fig. 406 19 mm x 30 m 470 x 250 750 x 750 x 300 Non Approved
Swing Automatic Fig. 407 19 mm x 30 m 470 x 250 750 x 750 x 300 Non Approved
Swing Automatic Fig. 408 25 mm x 45 m 600 x 200 750 x 750 x 300 Non Approved
