Fire Department Inlet

Fire Department Inlet

  • FM Approved Logo Mid Grey 300.jpg (1)
  • UL Logo Mid Grey 144.jpg (1)
Maximum Working Pressure 20.7 Bar (300 psi)
Material Cast Brass
Weight 3.8 kg
Approvals FM Approved, UL Listed

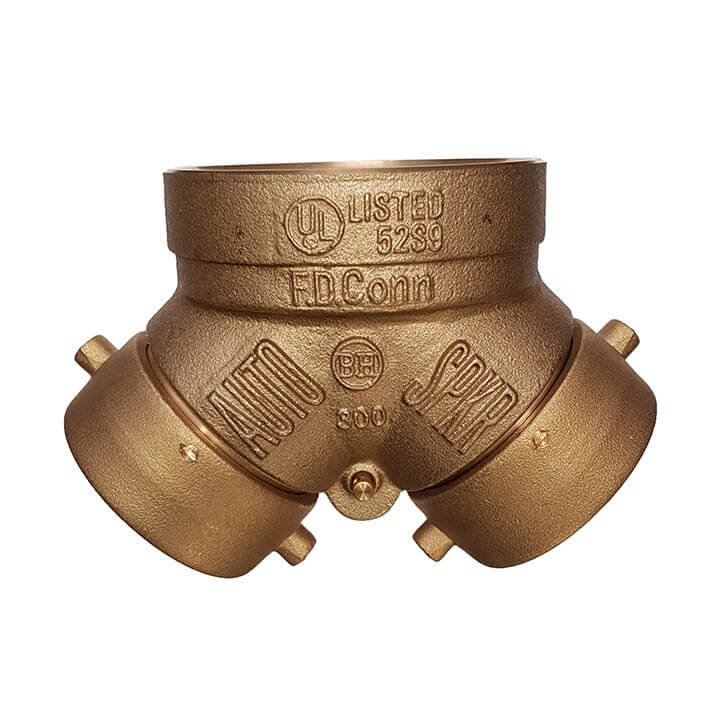

Fire Department Inlet allows the fire department to supplement existing fire protection system in the event of a fire. When a sprinkler system activates, the fire department connects hose lines from a pumper truck to the fire department connection. The unit provides 250 GPM flow (minimum), per each 2 1/2” inlet. Two-way inlet connection features single-clapper brass body (straight pattern), with female hose inlets and female outlet.

Threads

  Inlet Outlet
NST/BSP 2x 2-1/2” NST(NH) Thread (7-1/2 TPI) 1x 4” BSP Thread (11 TPI)
NPT/NPT 2x 2-1/2” NPT Thread (8 TPI) 1x 4” NPT Thread (8 TPI)
BSP/BSP 2x 2-1/2” BSP Thread (11 TPI) 1x 4” BSP Thread (11 TPI)
