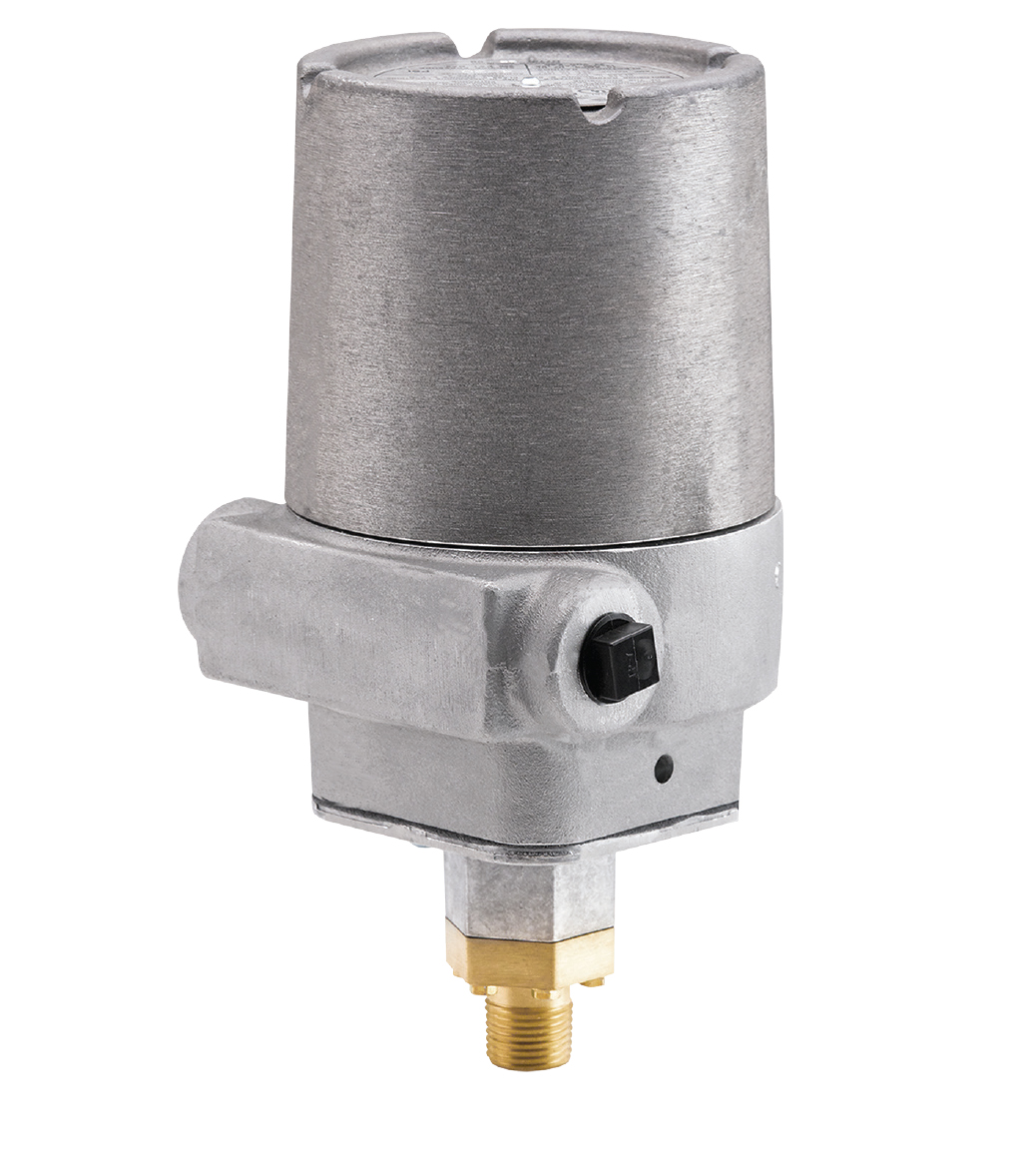

RDEPSEXP Explosion Proof Alarm and Supervisory Pressure Switch
| Maximum Operating Pressure | 17.2 bar (250 psi) |
|---|---|
| Switch Contact Ratings | Two sets SPDT (Form C) 10.0 A, ½ HP @ 125/250 VAC 2.5 A @ 6/12/24 VDC |
| Pressure Connection | ½˝ NPT male brass fitting |
| Operating Temperature Range | Indoor or outdoor use: –40°C to 71°C (–40°F to 160°F) |
| Enclosure Rated | UL 4x, NEMA 4 for indoor or outdoor use |
| Approvals | FM Approved |
The Rapidrop RDEPSEXP series is designed to handle extreme conditions, specifically crafted for environments with potentially explosive atmospheres. This specialized pressure switch ensures safety by monitoring the pressure in the system. With its robust construction and sealed enclosure, it minimizes the risk of ignition, making it a reliable choice for high-risk environments.
