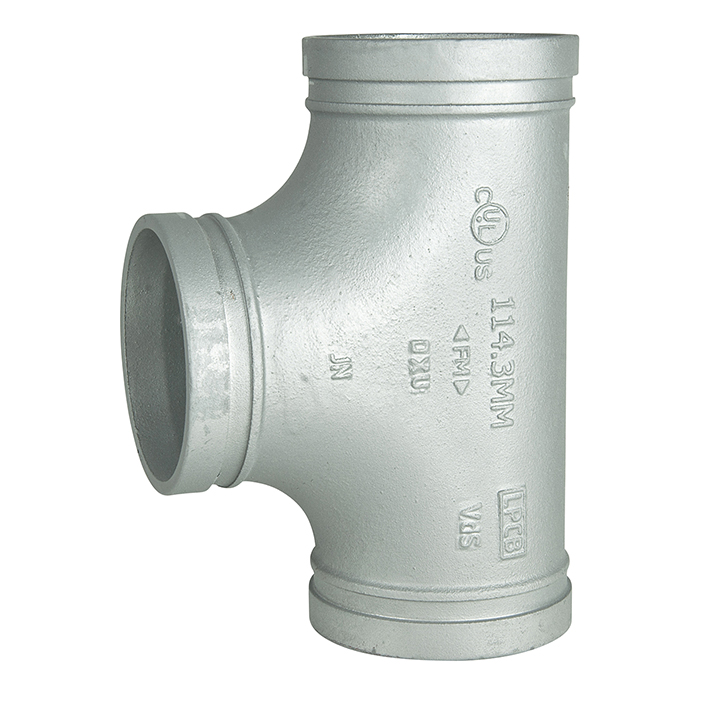

130 Equal Tee

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • VdS Logo mid grey 2.jpg
  • cnbop.png
Size range DN25 to DN300 (1" to 12")
Maximum working pressure Up to 34.4 bar (500 psi)*

*depending on size and certification, please refer to Data Sheet 8.56
Radius type Standard
Material Ductile Iron
Finish Red painted or Galvanised
Approvals FM Approved, UL Listed, VdS

Rapidrop Grooved couplings and fittings are used in assembly of grooved piping systems. They are available in painted and galvanised finishes and are FM, UL and VdS approved. The Rapidrop type 130 equal tees are pressure rated to 500psi and are used to create an oulet or a change of direction is required in the pipework. They can be used in standard and thin walled pipes.

Sizes & Dimensions

Nominal Size
mm/in		 Pipe
O.D
mm/in		 Working
Pressure
PSI/MPa		 Dimensions
L
mm/in
25
1		 33.7
1.315		 500
3.45		 57
2.24
32
1¼		 42.4
1.660		 500
3.45		 70
2.75
40
1½		 48.3
1.900		 500
3.45		 70
2.75
250
10		 273.0
10.750		 500
3.45		 229
9.00
300
12		 323.9
12.750		 500
3.45		 254
10.00
