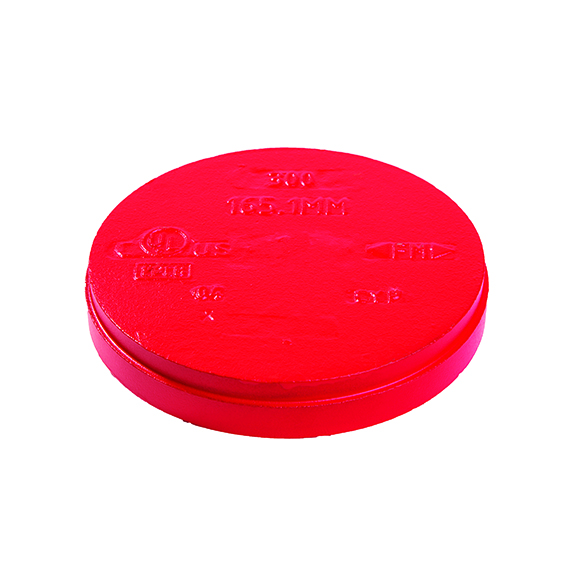

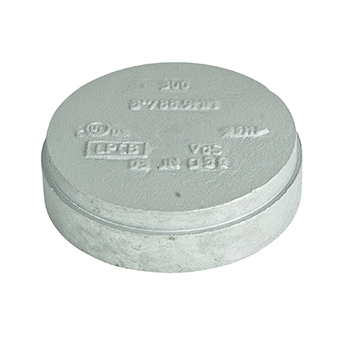

300 End Cap

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • VdS Logo mid grey 2.jpg
  • cnbop.png
Size range DN25 to DN300 (1" to 12")
Maximum working pressure Up to 34.4 bar (500 psi)*

*depending on size and certification, please refer to Data Sheet 8.68
Material Ductile iron
Finish Red painted or Galvanised
Approvals FM Approved, UL Listed, VdS

Rapidrop Grooved couplings and fittings are used in the assembly of grooved piping systems. They are available in painted and galvanised finishes and are FM, UL and VdS approved. The Rapidrop type 300 threaded end caps are pressure rated to 500psi and are use to cap pipework. They can be used in standard and thin walled pipes.

Sizes & Dimensions

Pipe
O.D
mm/in		 Working
Pressure
PSI/MPa		 Dimensions
mm/in
33.7
1.315		 500
3.45		 22.1
0.87
42.4
1.660		 500
3.45		 23.5
0.93
48.3
1.900		 500
3.45		 23.5
0.93
60.3
2.375		 500
3.45		 23.5
0.93
76.1
3.000		 500
3.45		 24.5
0.96
88.9
3.500		 500
3.45		 24
1.00
114.3
4.500		 500
3.45		 27
1.06
139.7
5.500		 500
3.45		 25.5
1.00
168.3
6.625		 500
3.45		 24.5
0.97
219.1
8.625		 500
3.45		 30.5
1.20
273.9
10.750		 500
3.45		 32
1.26
323.9
12.750		 500
3.45		 32
1.26
