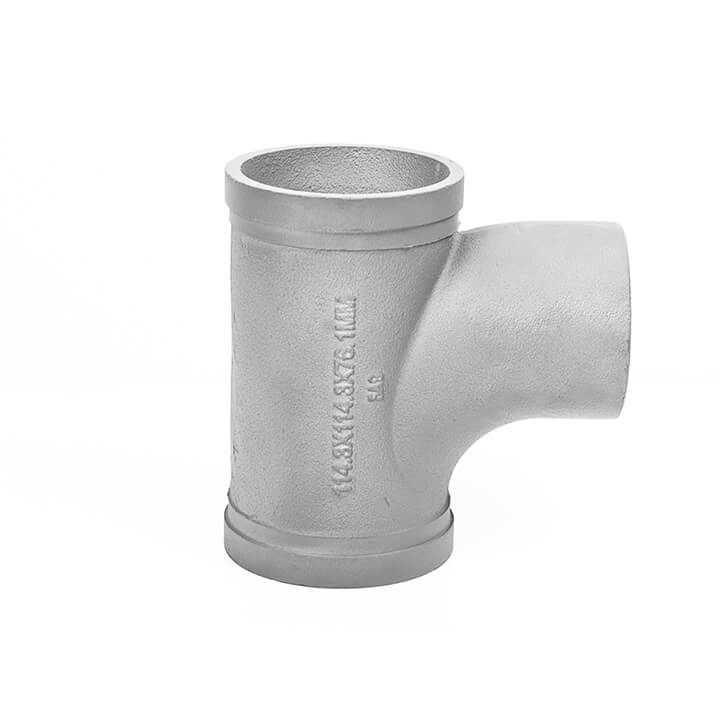

DRG009 Pitcher Tee

DRG009 Pitcher Tee

  • FM Approved Logo Mid Grey 300.jpg (1)
  • UL Logo Mid Grey 144.jpg (1)
Size 100mm (4") x 100mm (4") x 65mm (2 1/2")
Working pressure 20.7 bar (300 psi)
Finish Galvanised
Approvals FM Approved, UL Listed

Rapidrop pitcher tees are used within a dry or wet riser system, a landing valve is connected to the threaded end of the pitcher tee.

Dimensions

Nominal Size 100mm x 100mm x 65mm
(4" x 4" x 2.5")
Pipe O.D  114.3mm x 1143.3mm x 76.1mm
(4.500" x 4.500" x 3.00")
Hydrant Outlet BSP Taper
Dimensions

A 121mm (4.75")
B 133mm (5.25")
69mm (2.72")
