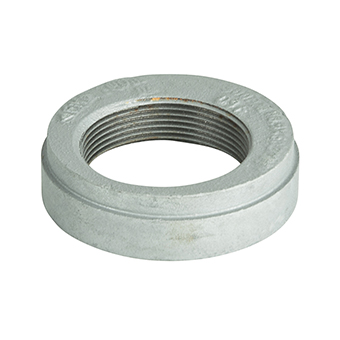

300PX Cap with Eccentric Hole

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • VdS Logo mid grey 600.jpg (1)
Size range DN80 x DN40 to DN200 x DN50 (3" x 1½" to 8" x 2")
Maximum working pressure Up to 34.4 bar (500 psi)*

*depending on size and certification, please refer to Data Sheet 8.72
Material Ductile iron
Finish Red painted or Galvanised
Approvals FM Approved, UL Listed, VdS Certified

Rapidrop Grooved couplings and fittings are used in the assembly of grooved piping systems. They are available in painted and galvanised finishes and are FM and UL approved. The Rapidrop type 300 end caps are pressure rated to 500psi and are use to cap pipework. The end cap has a threaded hole to allow for connection of threaded pipe or test and drain valves. They can be used in standard and thin walled pipes.

Sizes & Dimensions

Normal Size
mm/in		 Pipe
O.D
mm/in

Working
Pressure
PSI/MPa

 Dimensions
mm/in
80 x 40
3 x 1½		 88.9 x 48.3
3.500 x 1.900		 500
3.45		 23.5
0.925
80 x 50
3 x 2		 88.9 x 60.3
3.500 x 2.375		 500
3.45		 23.5
0.925
100 x 40
4 x 1½		 114.3 x 48.3
4.500 x 1.900		 500
3.45		 25.4
1.00
100 x 50
4 x 2		 114.3 x 60.3
4.500 x 2.375		 500
3.45		 25.4
1.00
125 x 40
5 x 1½		 139.7 x 48.3
5.500 x 1.900		 500
3.45		 25.4
1.00
125 x 50
5 x 2		 139.7 x 60.3
5.500 x 2.375		 500
3.45		 25.4
1.00
150 x 40
6 x 1½		 168.3 x 48.3
6.625 x 1.900		 500
3.45		 25.4
1.00
150 x 50
6× 2		 168.3 x 60.3
6.625 x 2.375		 500
3.45		 25.4
1.00
200 x 40
8 x 1½		 219.1 x 48.3
8.625 x 1.900		 500
3.45		 30.2
1.19
200 x 50
8× 2		 219.1 x  60.3
8.625 x 2.375		 500
3.45		 30.2
1.19
