204 APSAD Butterfly Valves (Grooved)

204 APSAD Butterfly Valves (Grooved)

  • apsad mid grey 300.jpg
Size range 50mm - 300mm (2" - 12")
Body type Grooved
Working pressure 20.7 bar (300 psi)
Working temperature -10°C to 100°C (12°F to 212°F) for EPDM seat
Body material Ductile Iron
Flying Lead 1 meter
Shaft material Stainless steel 416
Approvals Apsad, CNPP

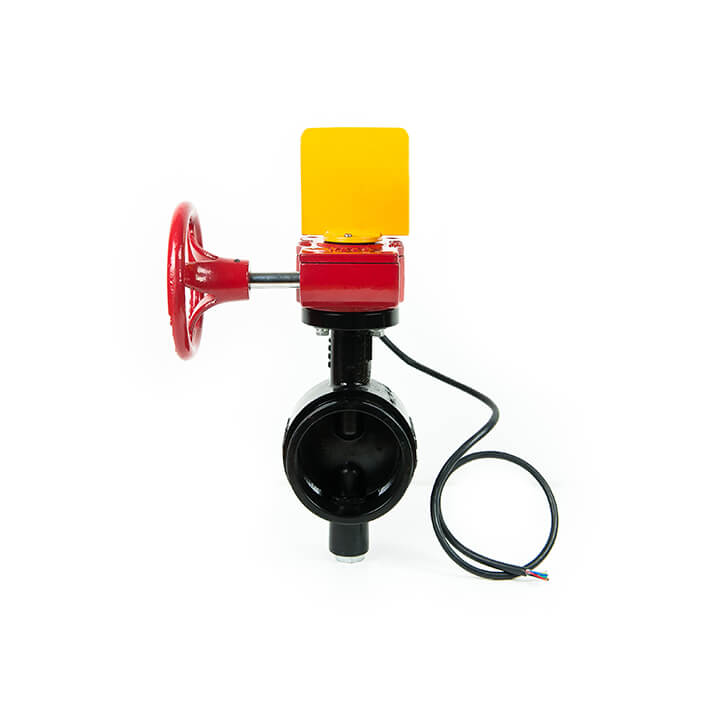

Model 204 gear operated grooved butterfly valve with factory installed two internal CE approved switches, one switch indicates upon opening, the second switch indicates upon closing. External extended bolts to adjust open/close position of the disc. Supplied with 1 metre flying lead & large indicator flag.

Dimensions

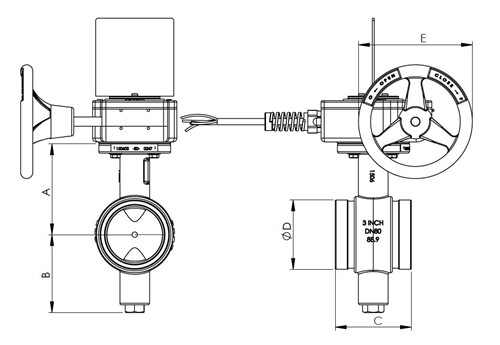

Rapidrop RD204 APSAD Butterfly Valves (Grooved) dims

Size A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 Weight
kg
Inch mm
2” DN50 100 70 82.4 60.3 142 7.6
2.5” DN65 106 75 96.8 73.0 142 7.7
2.5” DN65 112.5 75 96.8 76.1 142 7.7
3” DN80 112.5 82 96.8 88.9 142 8.1
4" DN100 135 100 116 114.3 142 10.3
5" DN125 148.7 119 147.6 139.7 142 12.6
6" DN150 176 119 147.6 165.1 142 15.4
6" DN150 176 130 147.6 168.3 142 15.4
8" DN200 204 162 133.4 216.3 177 19.4
10" DN250 228 200 158.8 267.4 274 31.8
12" DN300 266.2 224 163.6 318.5 274 42.0

Material Specification

Part Name Material EN Spec ASTM Spec
Body Ductile Iron EN-JS1050 A 536 65-45-12
Shaft Stainless Steel BS970 420S37 AISI 416
Disc DI EPDM Coated EN-JS1050 A53665-45-12
O-Ring NBR Commercial Commercial
Handwheel Shaft Stainless Steel BS970 420S37 AISI 416
