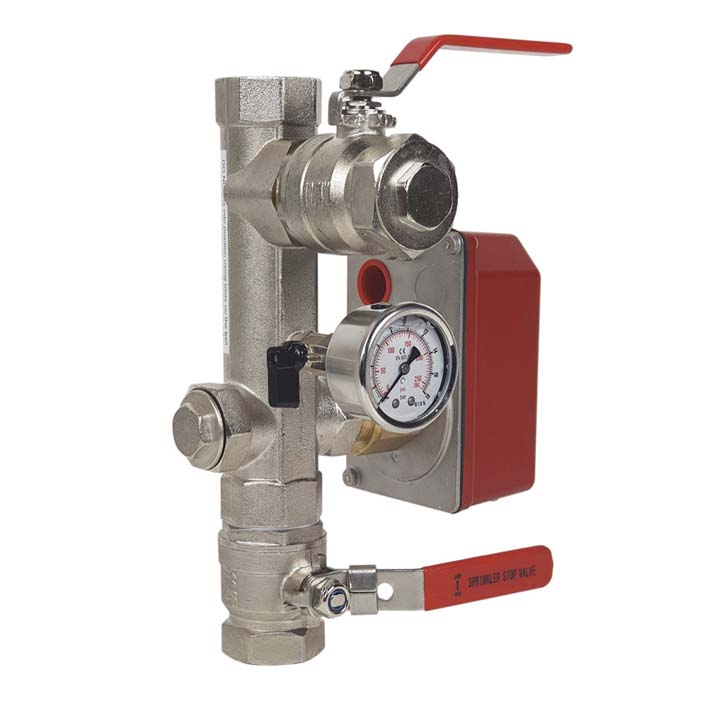

Dual Port Residential Alarm and Test Valve Assembly

Sizes 25mm (1")
32mm (1¼")
40mm (1½")
50mm (2")
Maximum working pressure 12 bar
Standards Conforms to BS9251:2014 (Data Sheet 7.06)
Conforms to BS9251:2021 (Data Sheet 7.16)
Connections Inlet and Outlet: Rp (BSP) threads in accordance with ISO7-1
Flow Switch Ports: Rp1 (1” BSP) threads in accordance with ISO7-1

offer an innovative, compact and affordable residential alarm valve test assembly for use that covers all the requirements of BS9251 for use in all domestic and residential properties. Valve can be installed in either the vertical or horizontal orientation.

Features

  • Ball valve with lockable handle
  • Fewer joints minimise risk of leaks
  • Factory fitted pressure gauge
  • Dual ports enable the flow switch to be mounted on either side.
  • Full bore test valve.
  • Glycerine filled 12 bar pressure gauge to EN837-1 (for compact flow switch, ref Data Sheet 7.06)
  • Glycerine filled 18 bar pressure gauge to EN837-1 (for RDVSR-S-EU Potter Switch, ref Data Sheet 7.16)
  • Gauge isolation valve to allow gauge replacement under pressure (for RDVSR-S-EU Potter Switch, ref Data Sheet 7.16)
  • Compact and space-saving design
  • Quick and easy installation
  • Fully compatible with CPVC fire sprinkler systems
  • Easy to access for servicing
  • Available with Compact Flow Switch or Time Delay Flow Switch

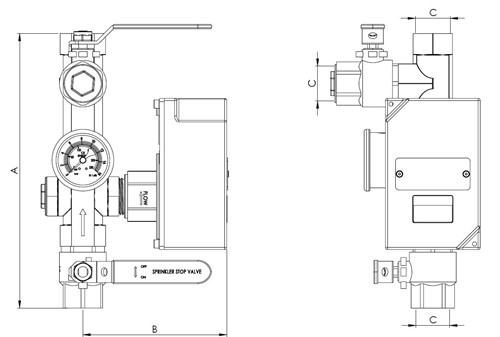

Dimensions

Riser Size A B D
DN25
1"		 260 135± 5 Rp1
1" BSP Thread
DN32
1 1/2"		 278 140± 5 Rp1
1 1/4" BSP Thread
DN40
1 1/2"		 305 145± 5 Rp1
1 1/2" BSP Thread
DN50
2"		 335 155± 5 Rp1
2" BSP Thread

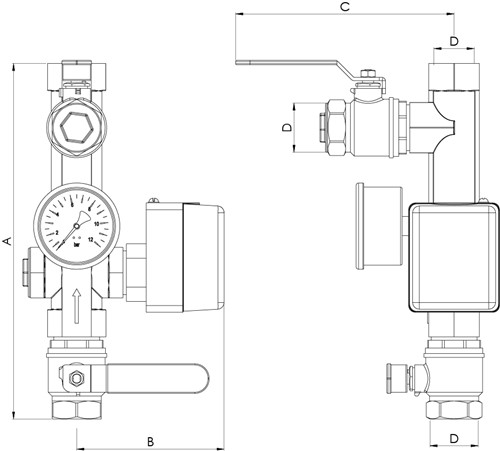

Dimensions - Compact Flow Switch

Riser Size A B C D
DN25
1"		 260 114 164 Rp1
1" BSP Thread
DN32
1 1/2"		 278 120 187 Rp1
1 1/4" BSP Thread
DN40
1 1/2"		 305 123 197 Rp1
1/2" BSP Thread
DN50
2"		 335 130 245 Rp1
2" BSP Thread
