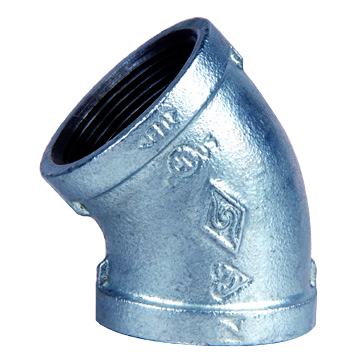

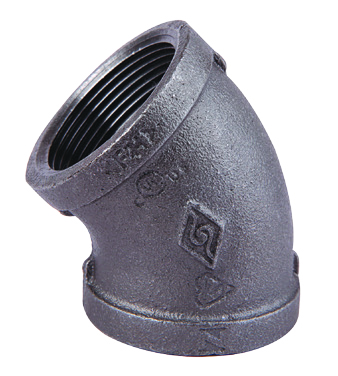

45º Elbow
Sizes | DN6 (1/8") to DN150 (6") |
---|---|
Max Working Pressure | Class 150: 20.7 bar (300 psi), Class 300: 34.5 bar (500 psi) |
Threads | ISO 7-1 |
Material | Malleable Cast Iron |
Approvals | FM Approved, UL Listed |
Rapidrop Iron Pipe Fittings are made from malleable cast iron but ductile iron is also optional
The pipe fittings are FM approved and UL Listed and conform to ASTIM A-197, ASTIM A47 and BS EN 1562 standards.
Class 150 fittings have a maximum working pressure of 20.7 bar (300 psi) and Class 300 fittings have a maximum working pressure of 34.5 bar (500 psi).
HDF is the standard finish of the pipe fittings but electroplated and black finishes are also available upon request.
