302 ANSI Swing Check Valve (Flanged)
Size range | 50mm - 300mm (2" - 12") |
---|---|
Body type | Flanged |
End connections | ANSI |
Maximum working pressure | 20.7 bar (300 psi) FM approved, 20.7 bar (300psi) UL listed, 25.0 bar (362 psi) LPCB approved |
Working temperature | 0°C to 80°C (32°F to 176°F ) |
Body material | Ductile Iron |
Approvals | FM and LPCB Approved, UL Listed |

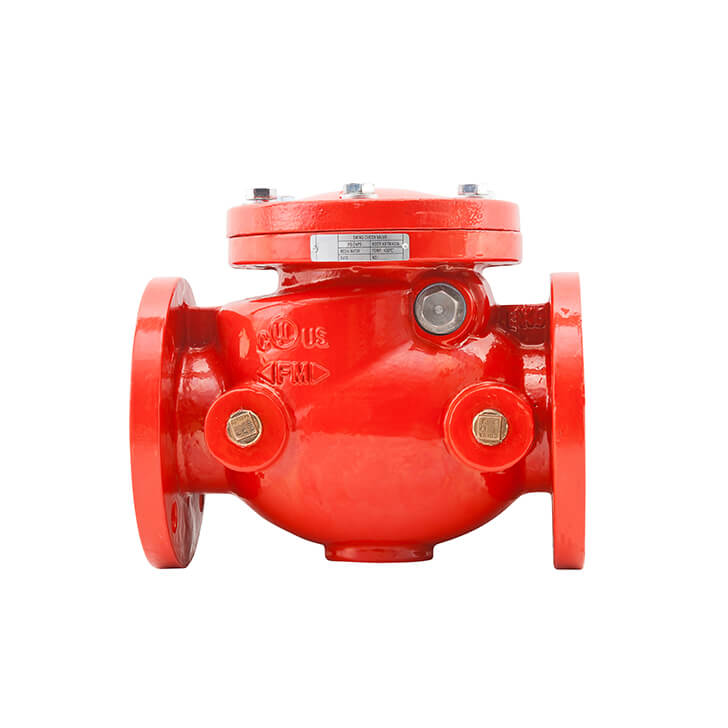

Rapidrop Fig. 302 is a rubber-faced, flanged swing type check valve that allows water flow in one direction only.
A hinged clapper remains open with water flowing in one direction and automatically closes when flow stops preventing backflow.
Removable cover allows easy access for inspection and maintenance.
These valves are suitable for installation in both horizontal and vertical (with the flow upwards) pipelines.
Rapidrop Fig. 302 flanged swing check valve is only available with ANSI 125/150 flanges.
Applications
Potable water, sewage disposal, water distribution service & feed lines, irrigation and fire protection pipe systems
Connections
ANSI 125/150 Flange to ASME B16.1
Dimensions
Sizes | Dimensions (mm) | Weight (Kg) |
||
Inch | mm | L | H | |
2" | DN 50 | 203 | 113 | 11.2 |
2.5" | DN 65 | 254 | 150 | 16.7 |
3" | DN 80 | 278 | 160 | 22.5 |
4" | DN 100 | 330 | 218 | 34.9 |
6" | DN 150 | 406 | 290 | 65.2 |
8" | DN 200 | 495 | 330 | 120.7 |
10" | DN 250 | 622 | 350 | 180.9 |
12" | DN 300 | 660 | 376 | 242.3 |

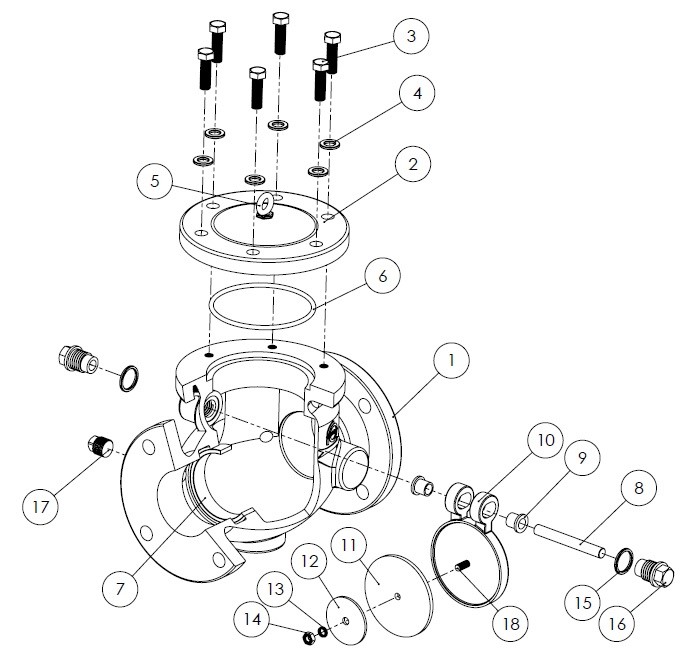

Material Specification
No | Description | No | Description | ||
1 | Valve Body | Ductile Iron 65-45-12 | 10 | Clapper Arm | Ductile Iron 65-45-12 |
2 | Cover | Ductile Iron 65-45-12 | 11 | Clapper Gasket | EPDM |
3 | Bolt | Carbon Steel Zinc Plated |
12 | Retaining Disc | Ductile Iron 65-45-12 |
4 | Washer | 13 | Spring Washer | SS304 | |
5 | Eye bolt | 14 | Nut | SS304 | |
6 | O-ring | NBR /EPDM | 15 | Washer | Nylon |
7 | Seat Ring | Bronze C83600 | 16 | Plug | Carbon Steel Zinc Plated |
8 | Hinge Pin | SS304 | 17 | Drain Plug | Copper Alloy |
9 | Hinge Bushing | Brass C36000 | 18 | Stud | SS304 |
