116FF OS&Y Gate Valve F4 series (Flanged)

116FF OS&Y Gate Valve F4 series (Flanged)

  • FM Approved Logo Mid Grey 300.jpg (1)
  • UL Logo Mid Grey 144.jpg (1)
  • VdS Logo mid grey 600.jpg
Size range 50mm - 300mm (2" - 12")
Body type Flanged
Working pressure 16 bar (232 psi)
Working temperature 0°C to 80°C (32°F to 176°F)
Body material Ductile Iron
Stem material Stainless steel
Standards EN 558-1 / Series 14
Approvals FM Approved, UL Listed, VdS

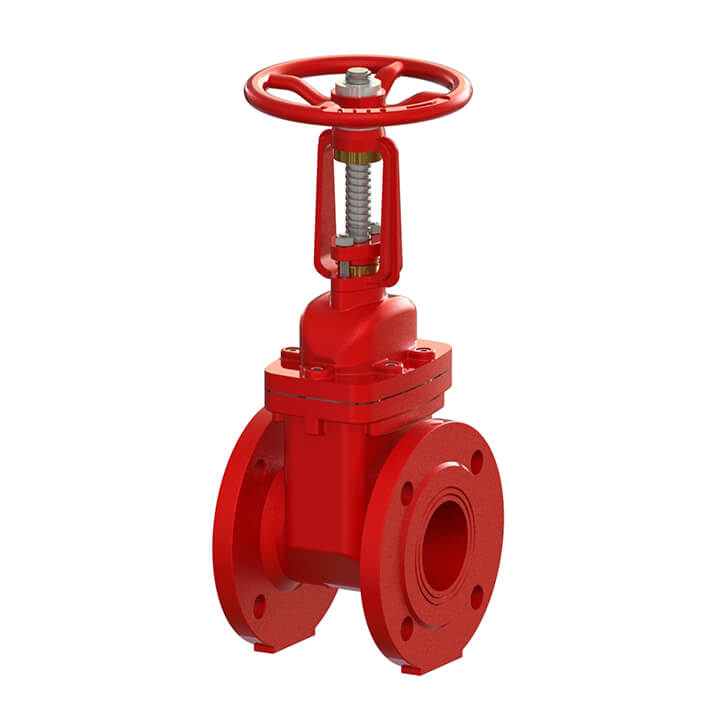

Rapidrop Fig.116FF Valve is a manually operated, outside screw & yoke resilient wedge gate valve designed for use in fire protection systems for on/off operation only. The lightweight ductile iron body allows for easier handling and reduced shipping costs. Valves are suitable for both vertical and horizontal installation.
Valve components are corrosion resistant or coated with a thermally applied fusion-bonded epoxy. The EPDM encapsulated ductile iron wedge with a compression mechanism is designed to achieve water tight sealing and low torque operation. The stem is pre notched to accommodate OSY2 limit switch.

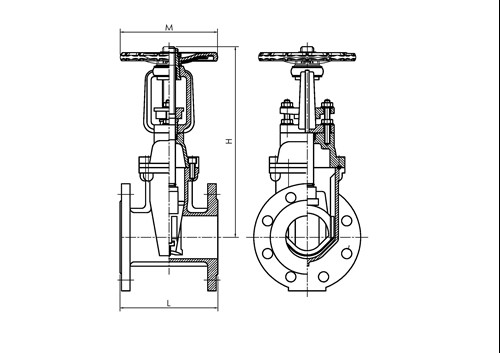

Dimensions

Rapidrop RD116FF OS&Y Gate Valve F4 Series (Flanged) dims

Sizes Dimensions Weight (Kg)
Inches mm L H (Closed) H (Open) M
2" DN 50 150 323 373 180 11.0
2 ½" DN 65 170 343 408 180 13.0
3" DN 80 180 370 450 200 17.8
4" DN 100 190 442 542 254 22.9
5" DN 125 200 540 665 280 35.0
6" DN 150 210 608 758 305 45.4
8" DN 200 230 720 920 350 60.5
10" DN 250 250 940 1190 450 124.1
12" DN 300 270 1065 1365 450 188.5




Material Specification

Rapidrop RD116FF OS&Y Gate Valve F4 Series (Flanged) spec

Description Material
Valve Body Ductile Iron
Disc Ductile Iron + EPDM
Bonnet Ductile Iron
Stem Stainless Steel
Gland Ductile Iron
Yoke Ductile Iron
Handwheel Ductile Iron
Locknut Carbon Steel Zinc Plated
Gland Nut Carbon Steel Zinc Plated
Stem Packing EPDM
