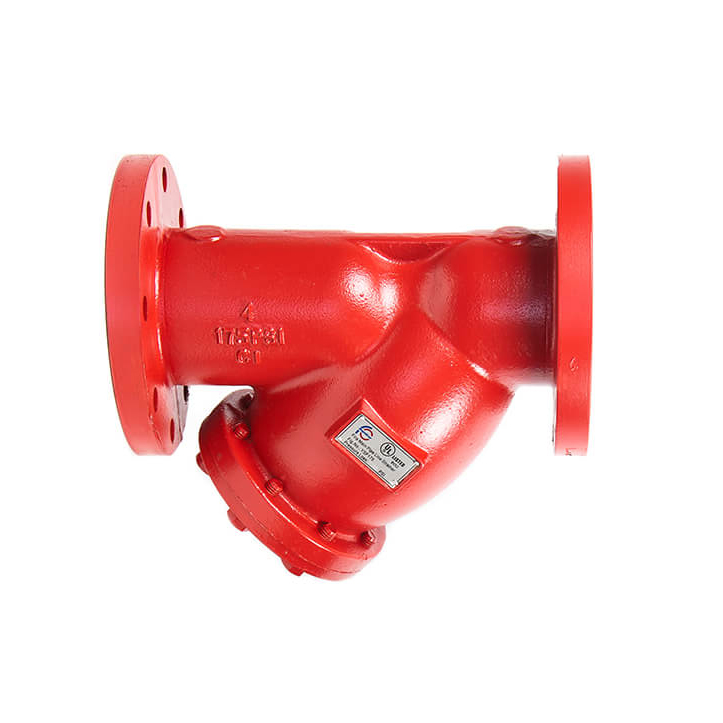

YSF Y-Type Strainer (Flanged)

YSF Y-Type Strainer (Flanged)

  • UL Logo Mid Grey.jpg
Size range 65mm (2½”) to 300mm (12”)
Body type Flanged
Maximum working pressure 12 bar (175 PSI)
Working temperature -10 °C to 120 °C
Body material Ductile Iron
Approvals UL Listed

Rapidrop Figure YSF175 Strainers filter out the dirt, rust, and other debris in the water flow protecting the valves and other equipment in the piping system.
All strainers are equipped with a flanged retainer cap which allows easy access to the stainless steel screen for cleaning.
Rapidrop Figure YSF175 Strainer should be installed horizontally with the cap facing downwards with access to remove the basket/screen.
