Pressure Reducing Valve

Pressure Reducing Valve

  • UL Logo Mid Grey.jpg
Size range 40mm to 200mm
Body Pattern Globe or Angle
Working pressure 175 or 300psi
Maximum Working temperature Up to 86°C (186°F)
Inlet connection Threaded, Flanged or Grooved
Outlet connection Threaded, Flanged or Grooved
Material Ductile Iron - ASTM A536
Finish Red Epoxy Coated
Approvals UL Listed

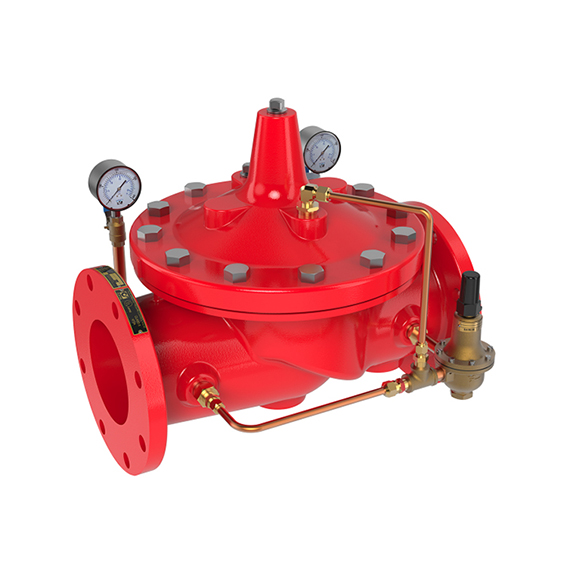

Cla-Val 90G-21 (globe) and 90A-21 (angle) Pressure Reducing Valves automatically reduce a higher inlet pressure to a steady lower outlet pressure regardless of changing flow rate and/or varying inlet pressure. The valves pilot control system is very sensitive to slight downstream pressure fluctuations, and will automatically open or close to maintain the desired pressure setting.

Advantages include:
  • Globe or Angle Pattern
  • Proven Reliable Design
  • Available in Cast Bronze, Ductile Iron and Cast Steel
  • Accurate Pressure Control
  • Grooved Ends (1 1/2” - 8”)



Specifications

Size Class 175 lb 40 mm- 200 mm (Globe)
50 mm - 150 mm (Angle)
Class 300 lb 40 mm - 200 mm (Globe)
50 mm - 150 mm (Angle)
End Details 150 ANSI B16.42 (Ductile Iron) (Bronze)
300# (Ductile Iron)
300# (Cast Steel)
300# (Ductile Grooved End)
Pressure Differential 0.7 Bar Min.
Pressure Adjustment Range Class 175 lb. 2 - 11.3 Bar
Class 300 lb. 2 - 11.3 Bar
Temperature Range Water to 82°C Max



Materials

Main valve body & cover Ductile Iron - ASTM A536
Main valve internal trim Stainless Steel 316 seat and disc guide
Stainless Steel 303 stem, stem nut and cover bearing
Pilot control system Bronze ASTM B62 with Stainless Steel 303 internal trim
Pilot control valve

Stainless Steel 303 tubing with Stainless Steel 316 fittings

Main valve and pilot valve diaphragm and disc: Buna-N® synthetic rubber



Flow Capacity Table

Value Size mm 40 50 65 80 100 150 200 250
Max Flow Rate LPM of Water 606 992 1412 2180 3755 8521 14763 23280



Dimensions

Value Size (mm) 40 50 65 80 100 150 200 250
A Threaded  184 238 279 318 - - - -
AA 150 ANSI 216 238 279 305 381 508 645 756
AAA 300 ANSI 229 254 194 337 397 533 670 790
AAAA Grooved 216 228 279 318 381 508 645 -
B 28 38 43 65 81 109 135 235
BB Grooved 52 54 73 6.00 4.13 6.00 184 -
C (Max) 140 161 192 208 270 340 406 435
CC (Max) Grooved 104 127 175 165 223 281 369 -
D 71 84 102 116 146 200 254 300
DD Grooved 71 84 102 116 146 200 254 -
E Threaded 83 121 140 159 - - - -
EE 150 ANSI 102 121 140 152 191 254 324 378
EEE 300 ANSI 108 127 149 162 200 267 349 395
EEEE Grooved - 121 - 152 191 - - -
F Threaded 48 83 102 114 - - - -
FF 150 ANSI 102 83 102 102 127 1552 203 219
FFF 300 ANSI 108 89 109 111 135 165 216 236
FFFF Grooved - 121 - 114 127 - - -
G (Max) 191 197 197 203 228 241 267 292
GG (Max) 206 203 - 207 236 267 292 -



UL Listings

Size mm Ductile Iron 150# F Ductile Iron 300# S Ductile Iron 300# F Bronze 300# Threaded  Cast Steel 300# F Globe Pattern Ductile Iron Grooved End Angle Pattern Ductile Iron Grooved End
40 UL UL UL UL   UL
50 UL UL UL UL UL UL UL
65 UL   UL UL UL UL
80 UL UL U UL UL UL UL
100 UL   UL   UL UL UL
150 UL   UL   UL UL
200 UL   UL     UL
250
