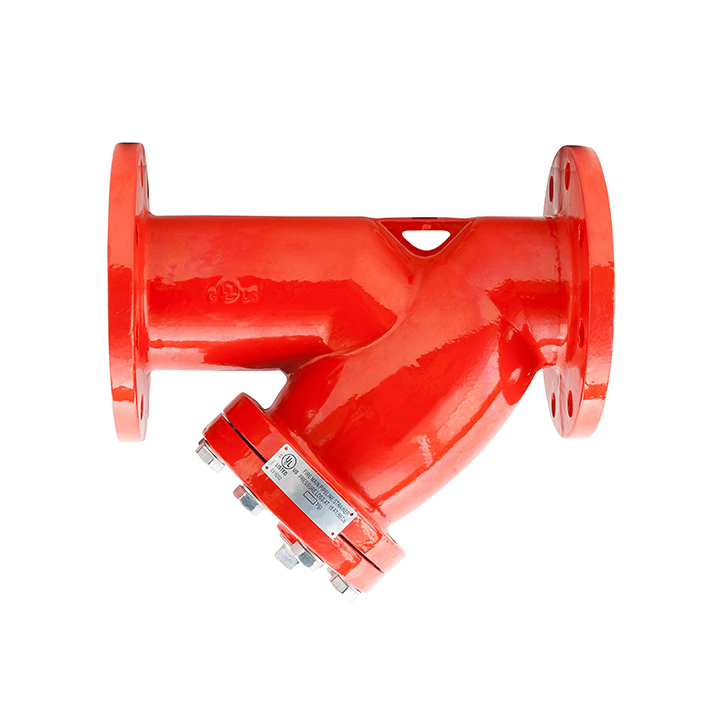

702 ANSI Y-Type Strainer (Flanged)

702 ANSI Y-Type Strainer (Flanged)

  • UL Logo Mid Grey.jpg
Size range 50mm (2”) to 300mm (12”)
Body type Flanged
Maximum working pressure 20.7 bar (300 PSI)
Working temperature 0°C to 80°C (32°F to 176°F)
Body material Ductile Iron
Approvals UL Listed

Rapidrop Figure 702 Strainers filter out the dirt, rust, and other debris in the water flow protecting the valves and other equipment in the piping system.
All strainers are equipped with a flanged retainer cap which allows easy access to the stainless steel screen for cleaning.
Rapidrop Figure 702 Strainers should be installed horizontally with the cap facing downwards with access to remove the basket/screen.

Sizes & Dimensions

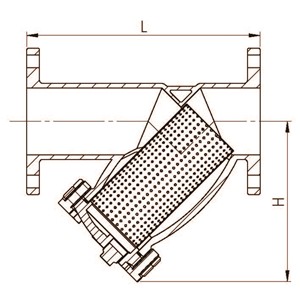

Rapidriop RD702 Y-Type Strainer (Flanged) Dimensions (DIMs)

Sizes Dimensions (mm) Weight
Inch mm L H
2” DN 50 200 155 8.7
2.5” DN 65 254 165 12.2
3” DN 80 257 180 13.8
4” DN 100 308 229 23.9
6” DN 150 470 311 43.8
8” DN 200 549 394 75.4
10” DN 250 654 487 109.3
12” DN 300 759 547 173.1



Material Specifications

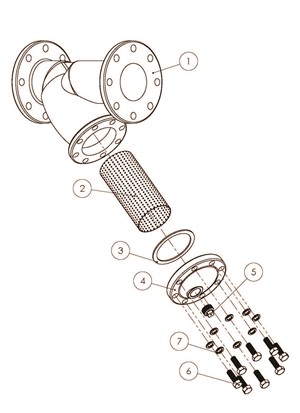

Rapidrop RD702 Y-Type Strainer (Flanged) Materials

No Description Material
1 Valve Body Ductile Iron 65-45-12
2 Screen Stainless Steel
3 Gasket EPDM
4 Cover Ductile Iron 65-45-12
5 Drain Plug Malleable Iron Galvanized
6 Bolt Carbon Steel Zinc Plated
7 Flat Washer Carbon Steel Zinc Plated
8 Eye-Bolt* Carbon Steel Zinc Plated

*Optional
