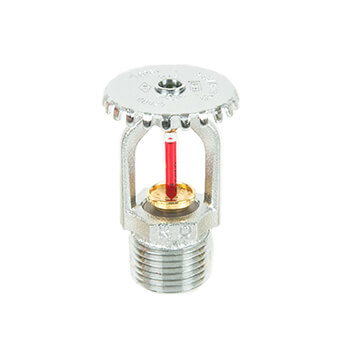

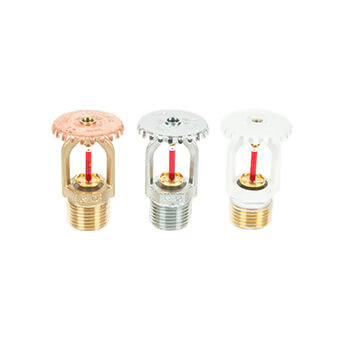

RD025 SSU Fire Sprinkler 3mm FM, UL, LPCB, VdS, CE - Brass RD025 SSU Fire Sprinkler 3mm FM, UL, LPCB, VdS, CE - Chrome RD025 SSU Fire Sprinkler 3mm FM, UL, LPCB, VdS, CE

RD025 SSU Upright Quick Response Sprinkler

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
  • LPCB Logo Mid grey 566d-02.jpg
  • VdS Logo mid grey 2.jpg
  • CE Logo Mid Grey 144.jpg
  • UKCA black Mid Gray.jpg
  • SBSC Grey.jpg
  • gost logo 300.jpg
  • MiB_Logo_Vertical_Colour.jpg
K factor 80 (5.6)
Standard Orifice Size 15mm (½”)
Standard Thread Size ½” NPT
Response Quick Response
Bulb 3mm
Maximum Working Pressure 12.1 bar (175 psi)
Finish Brass, chrome and white paint finish. Special RAL colours available on request
Approvals FM, UL, LPCB, VdS, CE, UKCA, SBSC, Gost

Rapidrop RD025 fire sprinklers are Upright (SSU), quick response, frangible glass bulb automatic sprinklers that are CE, VdS and LPCB approved.

They are standard orifice fire sprinklers for installation in fire sprinkler systems designed in accordance with standard installation rules, e.g. EN12845 or the requirements of the authority having jurisdiction.

SSU Upright sprinklers produce a hemispherical water distribution pattern below the deflector. In the instance of fire, the heat causes the fluid in the glass bulb to expand which shatters the glass and releases the spring seal assembly. Water flows from the orifice onto the sprinkler deflector which diffuses the water into a uniform spray pattern which extinguishes or controls the fire.

Specifications

K factor K80 (K5.6)
Standard Office Size 15mm (½”)
Thread Size ½”NPT
(R½” – ½”BSPT available on special order
Max. Working Pressure 12 bar (175 psi)
Min. Operating Pressure 0.5 bar (7psi)
Factory Pressure Test 100% at 34 bar (500 psi)
Weight 57grams (2oz.)
Fitted with Bulb Protector Remove after installing sprinkler


Operating Temperatures

Nominal Operating Temperature Bulb Colour
57ºC (135ºF) Orange
68ºC (155ºF) Red
79ºC (175ºF) Yellow
93ºC (200ºF) Green
141ºC (286ºF) Blue

RD025 Design Coverage

Spray Upright for installing only in upright position giving hemispherical discharge below the deflector with little or no water being discharged upwards. For sprinkler coverage area and placement refer to NFPA 13 standards or other installation rules for automatic sprinkler systems as required by the authority having jurisdiction.  The following details are provided for information only.

Rapidrop RD025 SSU Fire Sprinkler HeadRD025 SSU Sprinkler Design Coverage



Rapidrop K80 (K5.6) Sprinkler Flow Characteristics



Minimum Operating Pressure K80 Sprinkler Heads
