Dry Riser Horizontal Inlet Full Cabinet

Cabinet type Horizontal Inlet full cabinet
Size Height 395mm (15.5")
Width 595mm (23.4")
Depth 295mm (11.6")
Finish Red RAL 3002 or Stainless steel (Bespoke finishes available)
Standards Designed & manufactured to BS5041 part 5

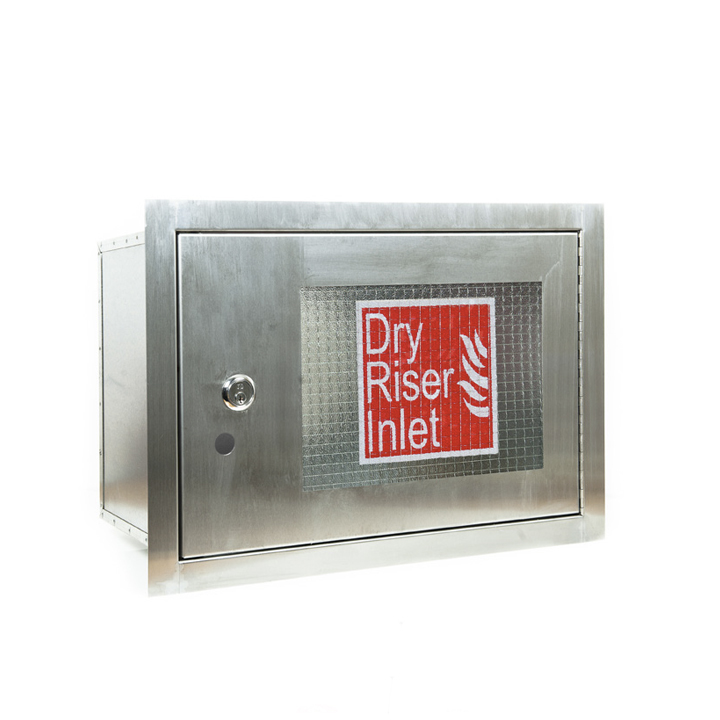

The DRC010 & DRC011 horizontal inlet cabinets are full cabinets designed for easy access to the dry riser inlet breeching valve. The cabinets are available in red RAL3002 (DRC010) with an epoxy powder coated paint with UV protection to prevent fading or in Stainless Steel (DRC011)

The inlet cabinet and breeching inlet should be positioned as closely as possible to the rising main in order to reduce the pressure loss and within easily accessible reach of the attending fire appliance which should be in an un-obscured sight of fire crews and no more than 18 metres away from the nearest vehicular access.

The cabinets have a wired Georgian glass door complete with a slam shut lock and stainless steel piano hinge.

Dimensions

Dimensions Approx Weight
Kg
High mm Width mm Depth mm
395 595 25 30


Specifications

 DRC010 Red / DRC011 Stainless Steel
Cabinet & Door Cold rolled low carbon steel / SUS 3004
Finish Red RAL 3002 / Stainless Steel
Glass 6mm Georgian Wired, PRV Lettering
Lock Slam Shut Lock Keyed Alike
Hinge Stainless Steel piano hinge


Material Specifications

Item Part Description Qty Material
1 Cabinet Shell 1 Cold Rolled Low Carbon Steel
2 Hinge 1 SUS304
3 Blind Rivet d 3.2 10 Aluminium
4 Door 1 Cold Rolled Low Carbon Steel
5 Press Plate 1 1.5mm Colour Zinc Plate
6 M5 Hexagon Locking Nut 6 Copper
7 Wire Glass 1 Glass 465 x 340 x 6mm
8 Latch Lock 1 Assembly
9 M4 x 16 Pan Head Screw 3 Steel
10 Signage  1
