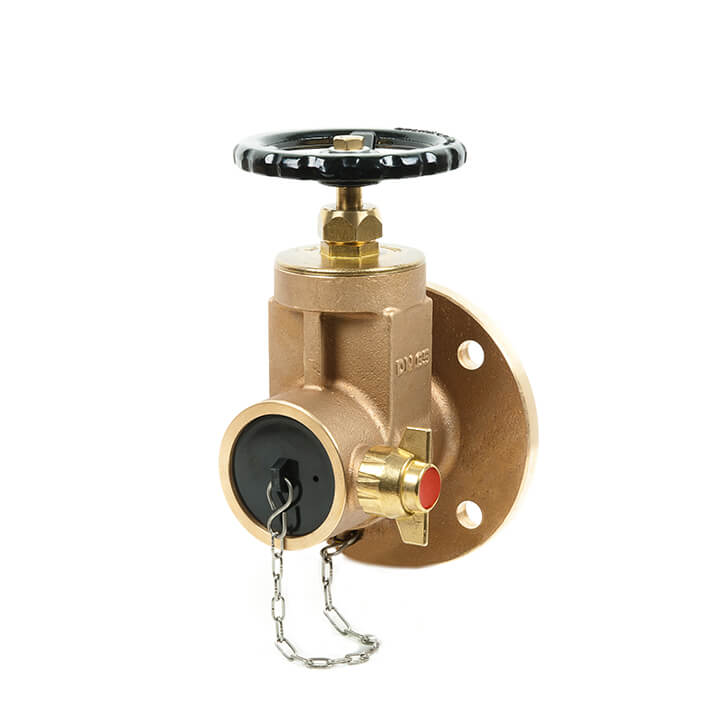

DRV002 Dry Riser Landing Valve Flanged

DRV002 Dry Riser Landing Valve Flanged

Size 65mm (2 ½")
Valve type Gate pattern
Inlet Connection PN16 Flange / Table D
Outlet Connection BS336 Female
Working pressure 22 bar (319 psi)
Body material LG2 bronze
Standards Manufactured in Accordance with BS5041 Part 2 Flange manufactured to BS4504

Dry riser landing valves are outlets from the riser main. The valves are situated on each floor of a high rise building and are usually housed in an outlet cabinet. Dry riser landing valves are available with PN16 inlet, Table D inlet, BSP threaded male inlet and BSP threaded female inlet. The outlets are to BS336 and come complete with cap & chain. Padlocks and straps are available on request.

Specifications

Size 65mm (2 ½”)
Material LG2
Pressure Rating Tested to 22 bar
Inlet Connection PN16 Flange / Table D
Outlet Connection BS336 Female
Manufactured in Accordance to BS5041 Part 2


Material Specifications

Item Part Description Qty Material
1 Body 1 LG2
2 Disc 1 Brass
3 Stem 1 Brass
4 Valve Cap O-Ring 1 Rubber
5 Valve Cap 1 Brass
6 Nut 1 Brass
7 Valve Stem O-Ring 1 Rubber
8 Nut 1 Brass
9 Handwheel 1 Brass
10 Handwheel Gasket 1 Steel
11 Nut M12 1 Steel
12 Tag 1 Brass
13 Spring 1 SUS304
14 Guard Knob 1 Brass
15 Nut M8 1 Steel
16 Cap 1 Plastic
17 Sealing Ring 1 Rubber
18 Cap with Chain 1 Plastic (cover) Steel (chain)
