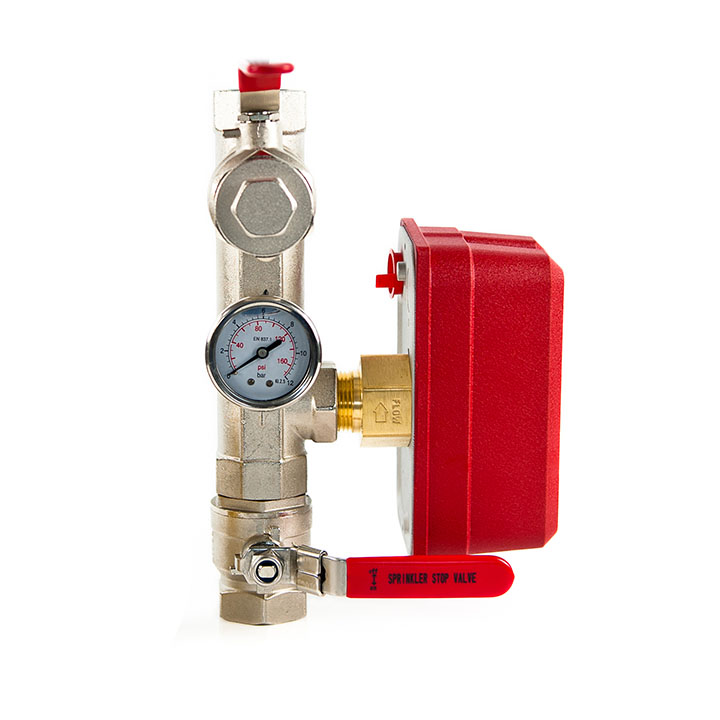

Single Port Residential Valve Set

Control Type Paddle
Paddle Size 25mm (1") 32mm (1¼") 40mm (1½")
Maximum Static Pressure 15 Bar (217)
Working Temperature Range 0°C to 60°C (32°F to 140°F)
Liquid Temperature Range 1°C to 100°C (34°F to 212°F)
Micro Switch SPDT
Material Brass Housing, stainless steel paddle, plastic cover

Flow Switch used in liquid flow lines carrying water or any liquid not harmful to brass.
