A61 Test & Drain Valve

A61 Test & Drain Valve

  • FM Approved Logo Mid Grey 300.jpg
  • UL Logo Mid Grey.jpg
Size range 25mm (1"), 32mm (1¼”), 50mm (2")
Connection type Threaded or grooved
K factors 25mm (1") - K40, K57, K80, K115
32mm (1¼”) K40, K57, K80, K115, K160, K200
50mm (2") K57, K80, K115, K160, K200, K240, K320, K360
Maximum Working pressure 20 bar (300psi)
Maximum Working temperature -10°C to 120°C (14°F to 250°F)
Material Forged brass body
Approvals FM Approved, UL Listed

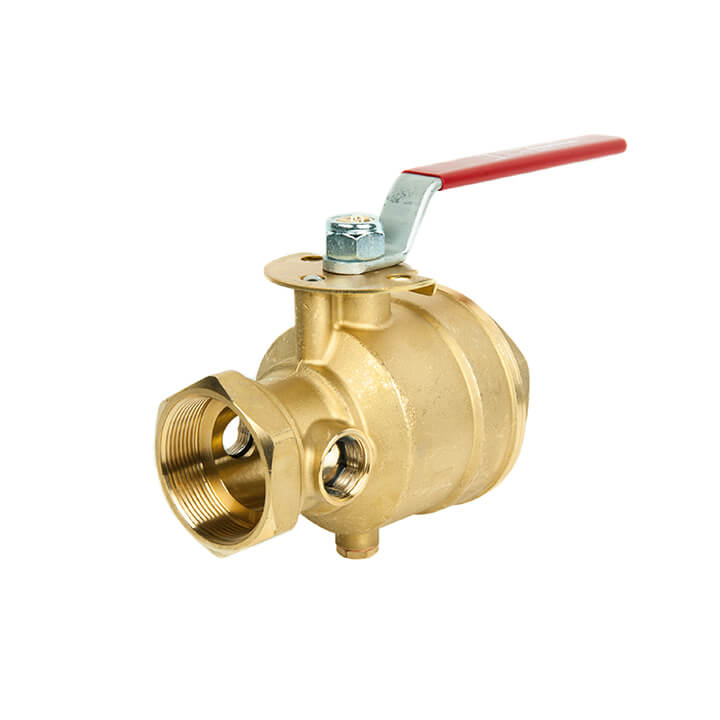

A61 Test and Drain valve for sprinkler systems combines the functions of test and drain for wet sprinkler systems. A61 valves have forged brass body with chrome plate brass ball valve and PTFE seats. The valves complies with the requirements of NFPA-13, NFPA-13R and NFPA-13D.

The A61 valves are single handle ball valves with three working positions. They include tamper resistant test orifice and sight glass for the visual control.

Test and drain valve for sprinkler systems combines the functions of test and drain for wet sprinkler systems, complies with the requirements of NFPA-13, NFPA-13R and NFPA-13D and is FM Approved and UL Listed.

Size and Connections

Size Type
25mm (1”) NPT FxF

32mm (1 ¼”)
50 (2”)
32mm (1 ¼”) Groove x Groove
50mm (2”)

Orifice Size & K factor

Valves size Orifice Size K factor
25 mm (1”) 9.5 mm (3 /8 ”) 40 (2.8)
11.1 mm (7 /16”) 57 (4.2)
12.7 mm (1 /2 ”) 80 (5.6)
13.5 mm (17/32”) 115 (8.0)
32 mm (1 ¼”) 9.5 mm (3 /8 ”) 40 (2.8)
11.1 mm (7 /16”) 57 (4.2)
12.7 mm (1 /2 ”) 80 (5.6)
13.5 mm (17/32”) 115 (8.0)
15.9 mm (5 /8 ”) 160 (11.2)
19.0 mm (3 /4 ”) 200 (14.0)
50mm (2”) 11.1 mm (7 /16”) 57 (4.2)
12.7 mm (1 /2 ”) 86 (5.6)
13.5 mm (17/32”) 115 (8.0)
15.9 mm (5 /8 ”) 160 (11.2)
19.0 mm (3 /4 ”) 200 (14.0)
23.8 mm (15/16”) 240 (16.8)
6.0 mm (15/64”) 320 (22.4)
7.5 mm (19/64”) 360 (25.2)

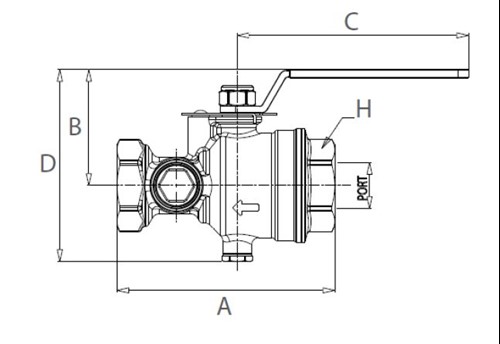

Female x Female Valves

Rapidrop A61 Test & Drain Valve

Size mm (in) Plug Port A mm B mm C mm D mm H mm
25 (1”) 6 (¼”) 27 (1/16”) 128 (5 1/32”) 68 (2 43/64”) 136 (5 11/32”) 112 (4 27/64”) 48 (1 57/64”)
32 (1 ¼”) 6 (¼”) 27 (1 /16”) 128 (5 1/32”) 68 (2 43/64”) 136 (5 11/32”) 112 (4 27/64”) 48 (1 57/64”)
50 (2”) 6 (¼”) 45 (1 12/16”) 157 (6 6/32”) 100 (4”) 173 (6 26/32”) 161 (6 21/64”) 67 (2 40/64”)



Groove x Groove Valves

Rapidrop A61 Groove Groove Test & Drain Valve

Size mm (in) Plug Port A mm B mm C mm D mm H mm
32 (1 ¼”) 6 (¼”) 27 (1 /16”) 163 (6 13/32”) 68 (2 43/64”) 136 (5 11/32”) 112 (4 27/64”) 32 GROOVE (1 ¼”)
50 (2”) 6 (¼”) 45 (1 12/16”) 157 (6 6/32”) 100 (4”) 173 (6 26/32”) 161 (6 21/64”) 50 GROOVE (2”)
