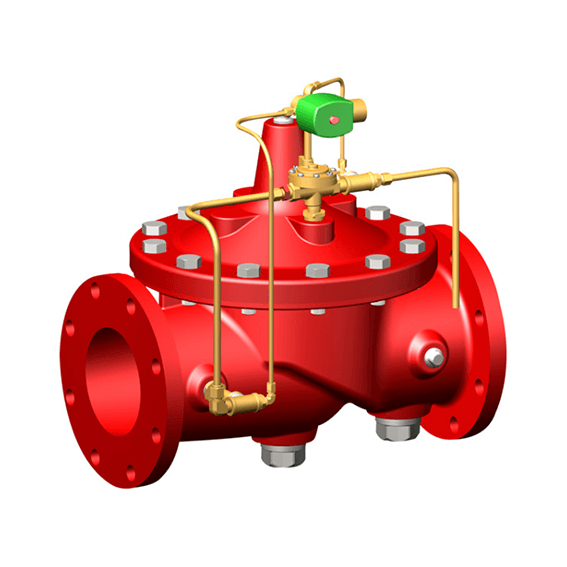

134-05 Solenoid Control Valve
| Size range | Globe: 3" - 12" flanged Globe: 3" - 8" grooved Angle: 3" - 12" flanged |
|---|---|
| End Connections | Ductile Iron 150 ANSI B16.42 flanged Ductile Iron 300 grooved Cast Steel 150 ANSI B16.5 flanged |
| Working pressure | 150 class - 17.2bar (250 psi) Ductile Iron 150 class - 19.6bar (285 psi) All other materials 300 class - 20.6bar (300 psi) All materials |
| Temperature Range | Water: 82ºC (180º F) maximum |
| Approvals | UL Listed |
The Rapidrop Model 134-05 Solenoid Control Valve is an on-off control valve which either opens or closes upon receiving an electrical signal to the solenoid pilot control. This valve consists of a 100G/2100G UL Listed Hytrol Main Valve, a three-way solenoid valve and an auxiliary pilot valve. This pilot control system alternately applies pressure to/or relieves pressure from the diaphragm chamber of the main valve. It is furnished either normally open (de-energize solenoid to open) or normally closed (energize the solenoid to open).
